| Place of Origin: | China |
|---|---|
| Brand Name: | KOMAI |
| Certification: | CE, ROHS, FCC, ISO 9001 |
| Model Number: | DA-05 |
| Minimum Order Quantity: | 1 Lane |
| Price: | Negotiable |
| Packaging Details: | Wooden Box Package |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union, Cash |
| Supply Ability: | 5000pcs/month |
| Material: | SUS304 Stainless Steel | Name: | Drop Arm Barrier |
|---|---|---|---|
| Lane Width: | 600-650mm | ODM/OEM: | Acceptable |
| Size: | 1200*200*980mm | Communication: | RS485, 12v Dry Contact / Relay |
| Highlight: | SS304 Drop Arm Turnstile,SS304 drop arm barrier gate,Relay Drop Arm Turnstile |
||

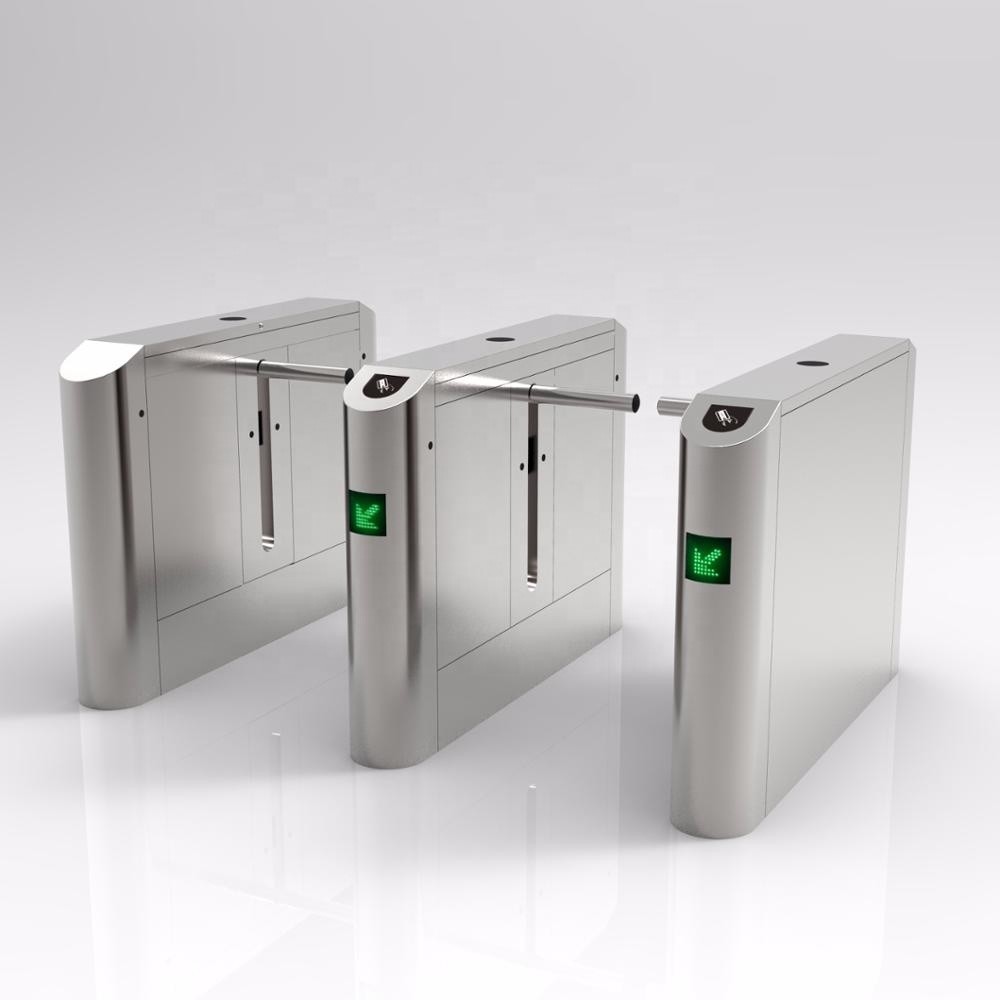

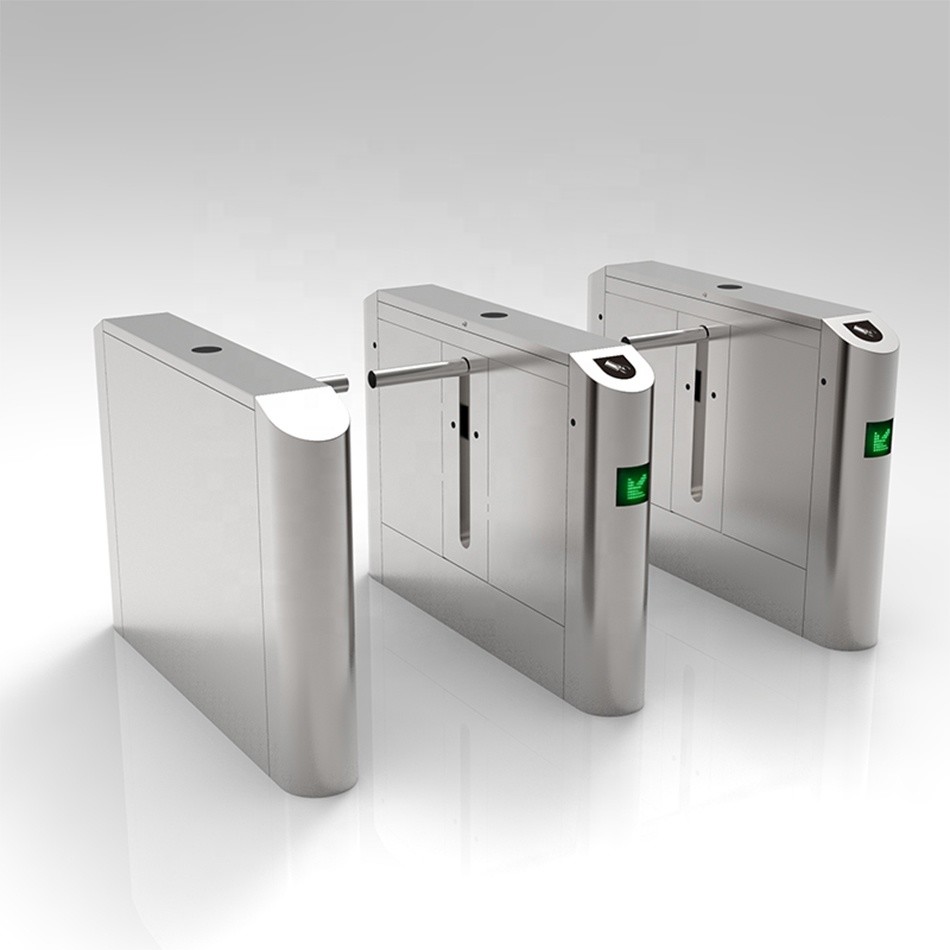

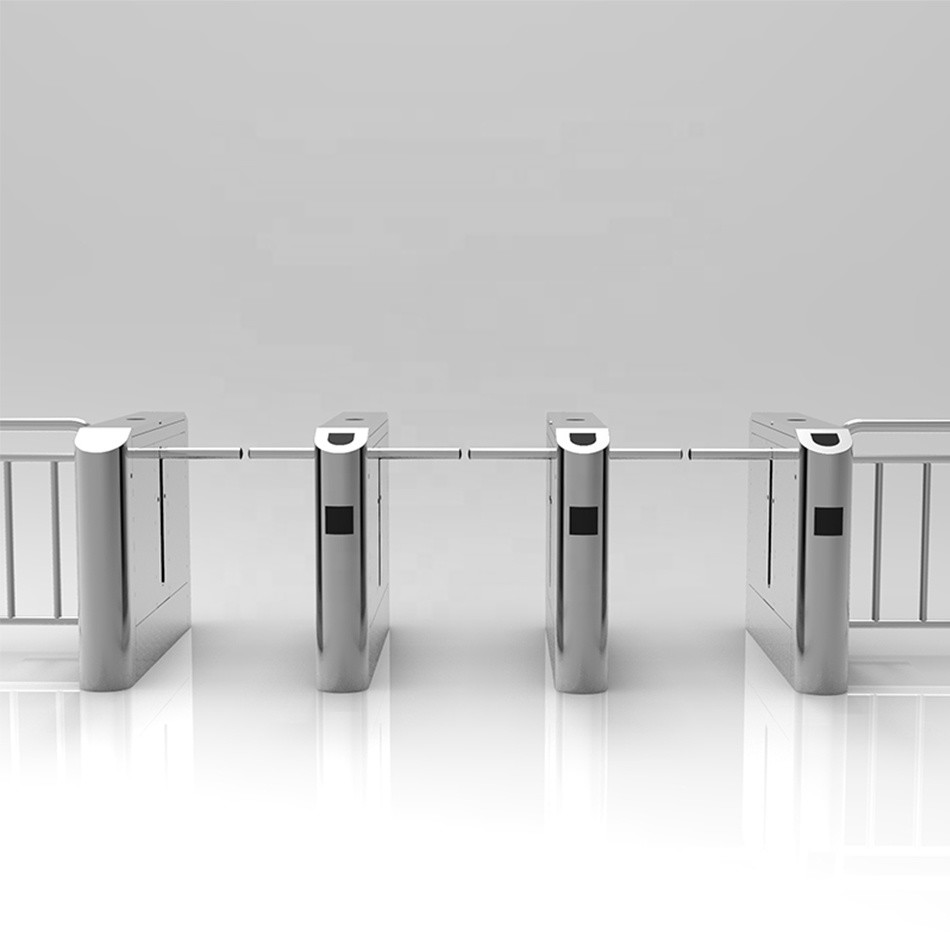

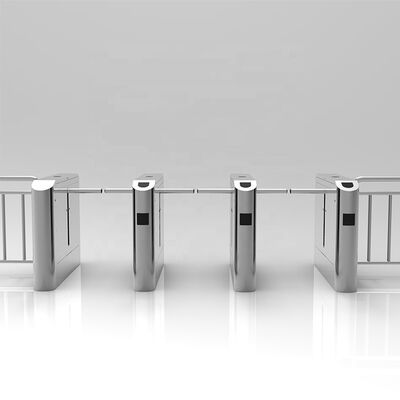

SS304 Stainless Steel Full Automatic Bi-Directional Drop Arm Gate
Introduction:
Drop Arm Barrier are intelligent passage management equipment researched, developed and produced by our company.The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.
Features:
1) Exquisite machining with Durable performance to meet the high -end market.
2) Unidirectional and Bidirectional passing modes for optional.
3) Wide pass channel to meet the pass groups with bicycle.baby carriages.wheelchair etc.
4) Humanized passing experience with personized voice prompt and guiding light.
5) Wide integrations with all types of systems of time attendance.visting.electronic ticketing.vending and static testing etc.
Parameters:
| Model | DA-05 |
| Brand | KOMAI |
| Size/Stick length | 1200*200*980(mm) |
| Arm length | 250-500mm |
| Material | SUS304 thickness(1.2mm) |
| Input Voltage | AC110-220±10%,50HZ60HZ |
| Driving motor | 24V |
| Failure-free operation | 5 million/time |
| Weight | 55kg |
| Traffic speed | 25-35 persons/min |
| Flap Opening/Closing Time | 0.2s |
| Channel width | ≤600mm |
| Operating temperature | -30℃—+70℃ |
| Communication interface | RS485/TCP/IP |
| Working environment | indoor / outdoor |
Functions:
1.Easy operation and convenient maintenance with functions of breakdown self check and alarm.
2.Flexible code dialing settings, having about dozens types performance for your selection.
3.Infrared and mechanical anti-clamping provide double protection. When a sudden impact force is applied during system reset, the turnstile will automatic stop or rebound, sending out alarm signal at the same time.
4.Various alarm patterns, including illegal intrusion, reverse passing , anti-trailing and overtime passing alarm etc.
5.Impact resistant, without receiving the open signal, turnstile arm locks automatically.
6.Anti-reverse passing, when somebody attempt to passing reversely, the wing quickly shuts at the same time alarms.
7.High brightness access indicator light and its humanized prompt function, make the passageway more characteristic.
8.Adjustable for modes of normal open and normal close ,can easily be achieved through code-dialing or external manual button controlling.
9.Automatic detection and reset function: System will automatically cancel the access permissions when no objects passing is detected within the prescribed period of time (adjustable).
10.The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.
11.Can be linked with a variety of control equipments, receiving the signal of relay switch .
12.Diversify passageway modes, can be one-way or two-way passing or one-way controlled, reverse free passage.
13.Strong environment adapting ability , Turnstile cam be installed in any harsh environments, with strong ego protecting ability. such as weak current, short circuit, glare, fog rain and snow weather, typhoon or other environmental change.
FAQ:
1) Are you manufacturer or Trade Company?
We are the manufacturer,and we provide the OEM service.
2) What is your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for big quantity.
3) How to ship?
By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.
4) What is your delivery time?
The time of delivery is within 30 days after receipt of deposit.
5) What is the shipping port?
We ship the goods via Shenzhen Port.
6) How about the payment method?
Standard products: 30% T/T deposit, 70% T/T balance payment before shipment.
Customized products: 50% T/T deposit, 50% T/T balance payment before shipment.
Contract amount more than USD15000: 50% T/T deposit, 50% T/T balance payment before shipment.
7) How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap.
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
8) What's you warranty?
1 year time warranty.
