| Place of Origin: | China |
|---|---|
| Brand Name: | KOMAI |
| Certification: | ISO, Rohs, CE, FCC |
| Model Number: | KM-SW01 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box Package |
| Delivery Time: | 3.7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs per month |
| Leafs: | Acrylic | Lane Width: | 600-1200mm |
|---|---|---|---|
| Material: | GB 304 Stainless Steel | Size: | 1200*280*980mm |
| Bicycle Pass: | Available | ODM/OEM: | Acceptable |
| Highlight: | Brushless Swing Barrier Turnstile,Brushless swing gate turnstile,Brushless turnstile swing gate |
||

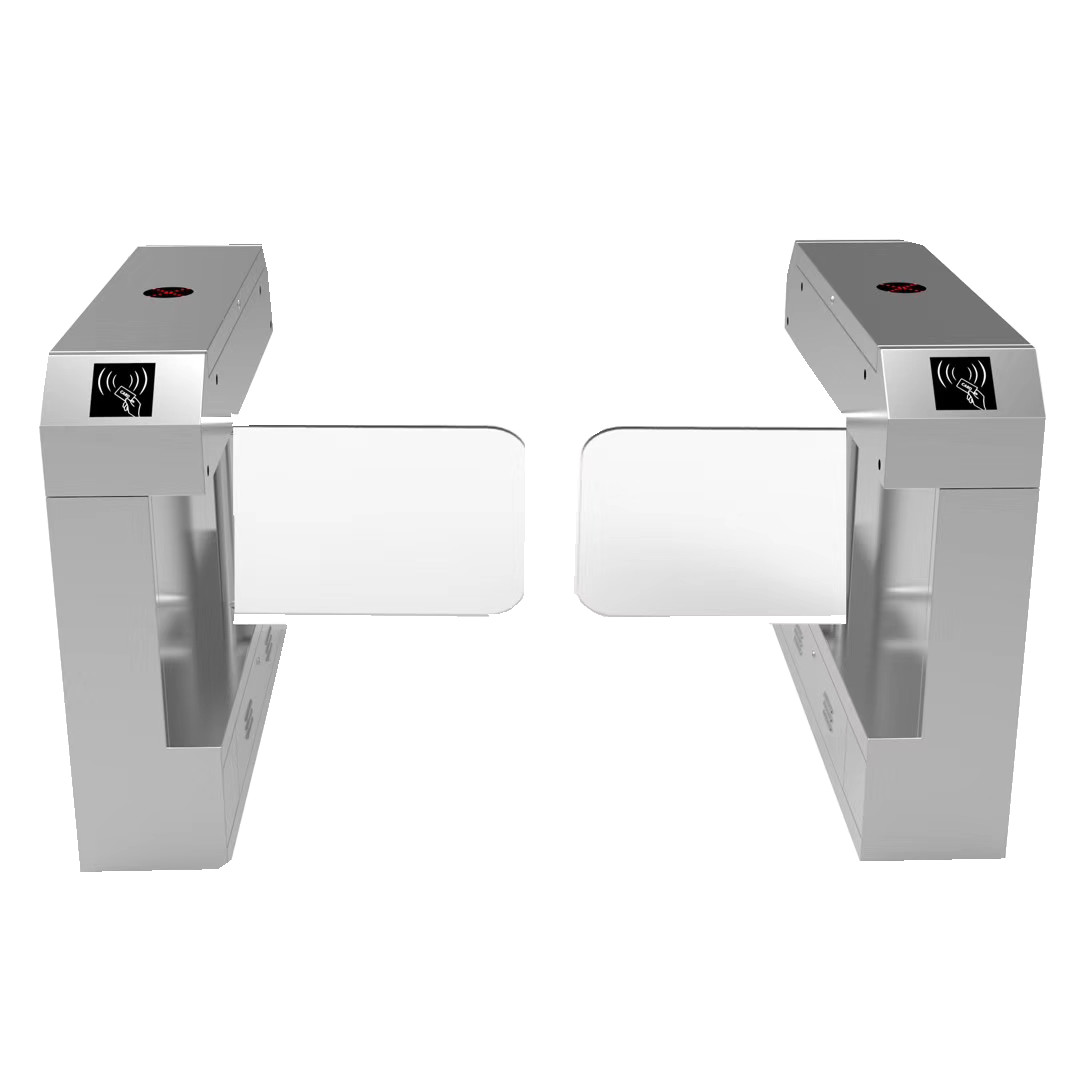

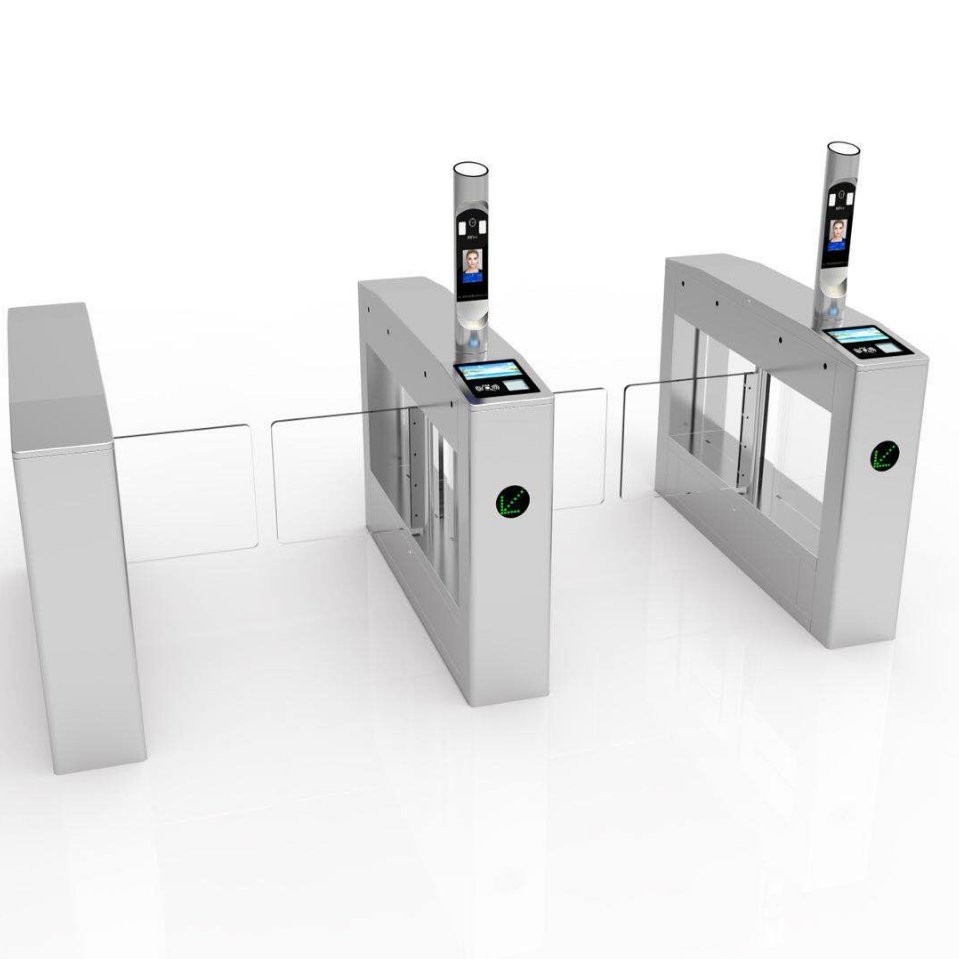

Brush/Brushless Optional 304 Stailness Steel Turnstile Security Doors
Product Details:
1) Automatic Reset Functions: after you swipe the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suited for you). Totally meet the fire protection needs.
2) Anti-clamp by infrared sensor: Install multi-pair of infrared sensors near the anti-clamp area where swing gate is moving. Once people or thing is detected within the anti-clamp area, the swing gate will automatically stop moving; until the people or thing leaves the anti-clamp area, the swing gate will continue to move
3) The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system/ Push button,and so on.
4) Alarm function: when arms are pushed by force illegally, the alarm will be triggered automatically and arms will be set locked. Self-examine.
5) Before received the open signal, the turnstile will lock automatically.
6) The retractable can be adjustable (specific to double swing gate).
7) The turnstile direction: single or bidirectional optional (pedestrian can enter and exit from one pair of turnstile).
8) It can use for indoor and outdoor settings.
9) In case of emergency, the Swing gate will open when power off.
10) It is suitable for all kinds of places
| 1 | Power | AC220C±10V,50/60HZ; |
| 2 | Operating Temperature | -45℃-60℃ |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Passage Width | 600mm-1000mm (optional) |
| 5 | Passing Speed | Normally open-50persons/min; Normally closed-40persons/min |
| 6 | Manufacturing Technique | CNC laser cutting |
| 7 | Motor | DC Brushless motor or servo motor 140W/24V |
| 8 | Gate Opening and Closing time | ≤ 0.2S |
| 9 | Infrared Sensors | 5-10 Pairs |
| 10 | Working environment | indoor and outdoor(added the rainshed ) |
| 11 | Motor Operation Speed | 1600R/Min |
| 12 | Communication Distance | ≤1200M |
| 13 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
| 14 | Communication Connection | RS485 Communication |
| Barrier Material | Acrylic glass, SS304 and so on | |
| 15 | Material | Stainless steel 304,thickness is no less than 1.5mm |
| 16 | Running Life | 5--8 Million(Continuous Opening and Closing Operation) |
| 17 | Protect Level | IP65 |
| 18 | Size | 1200/1400*280/180*980mm (customized) |
| 19 | Colour | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Color you like |
| 20 | Operation Place |
Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
