| Place of Origin: | China |
|---|---|
| Brand Name: | KOMAI |
| Certification: | CE,ROHS,FCC |
| Model Number: | KM-TRI02F |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs/month |
| Material: | 1.5 Thickness SUS304 | Dimenstion:: | 1200*280*990mm |
|---|---|---|---|
| Input Interface: | +12V Electrical Signal Or Impulse Signal | Power Supply: | AC220V/110V Or 50/60Hz |
| Face Capacity: | 5000-20000 | Communication: | RS485, 12v Dry Contact / Relay |
| Access Control: | Facial Recognition | Odm/oem: | Accepted |
| Highlight: | RFID biometric tripod turnstile,Facial Recognition biometric tripod turnstile,SUS304 Biometric Tripod Turnstile |
||

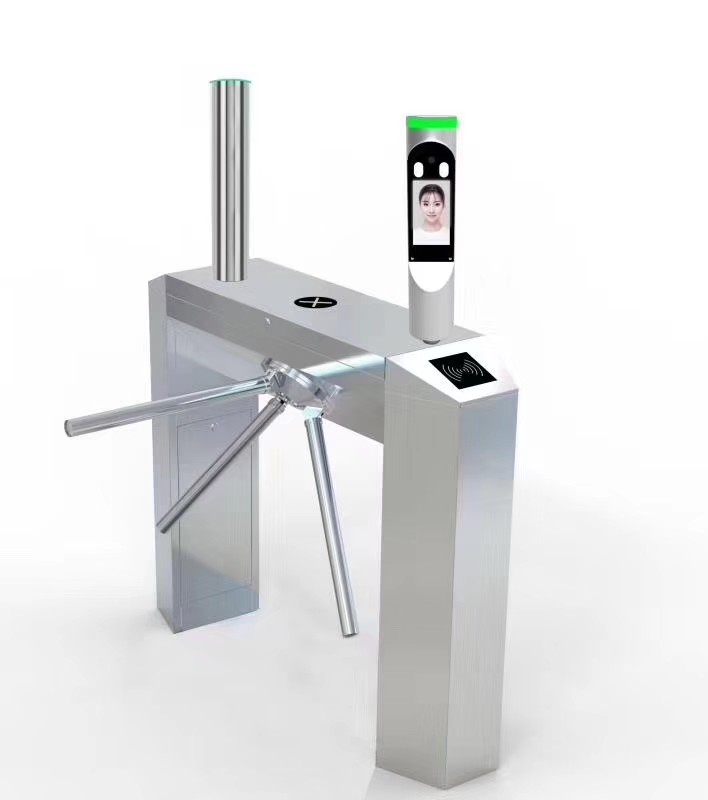

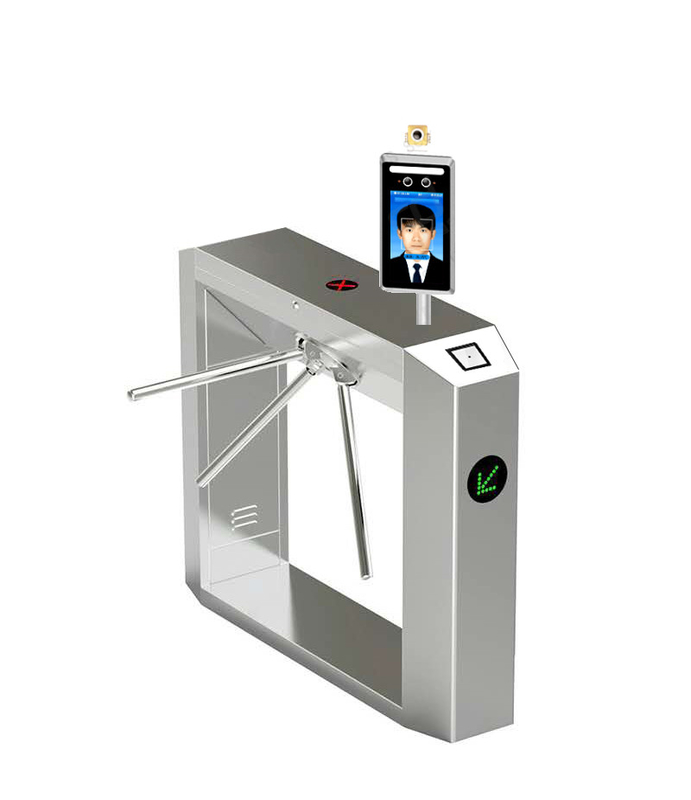

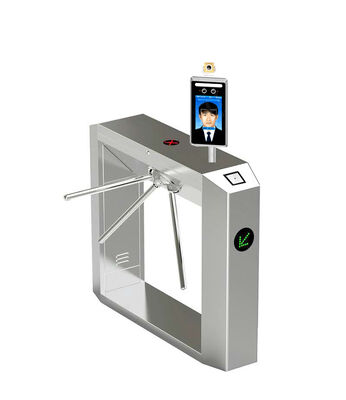

Face Recognition Biometric Fingerprint RFID Access Security Turnstile Gate
Brief Introduction:
Place of Origin: Shenzhen, China
Brand Name: KOMAI
Model Number: KM-TRI02S
Product name: Facial Recognition Access Control Tripod Turnstile
Framework Material: 304 Stainless Steel
Dimension: 1200 * 280 * 990mm
Passage Width: 550mm (Arm length: 500mm)
Passing Direction: Single directional / Bi-directional
Flow Rate: 35-40 people per minute
Power supply: AC220V/110V, 50/60Hz
Operation Voltage: 24V DC
Power Consumption: 20W
Net Weight: 50kg
| Power Supply | AC220V |
| Temperature | -15 to 60 degrees |
| Humidity | <95%, without concretion |
| Passage Width | <=600mm |
| Passing Speed | 40 persons/min |
| Power Consumption | 100W |
| Input Interface | +12V electrical signal or impulse signal |
| width | more than 100ms |
| drive current | >10mA |
| Communication Interface | RS485 (Distance:<=1200m) |
| Material | 304 stainless steel |
| Dimension | 1200*280*980 mm |
|
Pad size: 7inch or 8inch
|
1. GB 304 stainless steel sheet metal forming, beautiful, durable
2. Dimensions : 1200*280*990 (mm)
3. Channel width: less than 550 (mm);
4. Brake lever steering : one-way, two-way (optional)
5. Control mode: manual/ automatic (optional)
6.Support HDMI external large screen;
7.Support night light fill;
8.Support external QR code scanner and ID card reader (currently only supports the excellent card reader ID-R21 serial version);
9.Support serial port, Wiegand 26, 34 output, output content support configuration;
10.Adopt dynamic face detection and tracking recognition algorithm based on video stream
11.Support device local storage mega-bank, support simultaneous storage of 20,000 face photos (photos are calculated in 100KB), 10,000 identification records (including on-site snapshots);
12.When the face database is 3000, the recognition rate of 1:N is 99.7% under the condition of three-thirds of the misunderstanding rate;
13.Fast recognition speed, (a) face tracking and detection takes about 20ms (b) face feature extraction takes about 200ms (c) living body detection face time takes 0.2ms (1000 people library, multiple recognition Average), 0.5ms (10000 people database, multiple recognition average);
14.Support for stranger detection, stranger level configurable;
15.Support for live photo preservation when face recognition or stranger detection;
16.Support LAN deployment mode;
17.Support HTTP interface interface docking;
18.Support screen display content configuration;
19.Support for identifying distance configurations.
Packaging Details:
Commodity: Smart Door Access Control System RFID Biometric Tripod Turnstile Barrier
Package Type: Export Wooden Box
Product Dimension: L1200 * W280 * H990mm
Packing Dimension: L1320 * W410 * H1170mm
Unit Weight: 50kg
Gross Weight: 75kg
CBM: 0.63CBM/pcs
Port: Shenzhen Yantian, Shekou
Lead Time : 3-7days
FAQ:
1.Will you install the channel lock for the first time?
Answer: on channel brake installation is very simple, just put the product fixed well, main machine and insert 110V/220V power supply, can normal use, if you need to connected to the Internet, only need to use a network line can be received from the main computer, we will provide all the one-on-one phone technology Guidance services.
2.Can machines be used outside?
Answer:It can be used outside. We all have waterproof function.
3.What is the warranty for the machine?
Answer: (1) we guarantee all goods quality assurance for two years.
(2) within the two years warranty time,if the machine have problem,we can offer you the accessories(but you pay the freight cost)
4.When will you make the delivery?
Answer:regular products:(3-5 days),irregular products:communication when you place the order.
5.Payment term?
Answer:30% by T/T in advance.70% by T/T before delivery.
