| Place of Origin: | China |
|---|---|
| Brand Name: | KOMAI |
| Certification: | CE, ROHS, FCC, ISO 9001 |
| Model Number: | KM-FH812 |
| Minimum Order Quantity: | 1pcs |
| Price: | 2000usd |
| Packaging Details: | Color box packing |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000pcs/month |
| Material: | 304/316 Stainless Steel | Size: | 1500*1500*2300 (mm) |
|---|---|---|---|
| Power Supply: | AC220V/110V And 50/60Hz | Gross Weight: | 220kg |
| Passing Speed: | 30-40 Persons/min | Access: | Output Relay Signal, Can Connect Any Access |
| Highlight: | Single Lane Full Height Turnstile Gate,Fingerprint Full Height Turnstile Gate,fingerprint access control turnstile gate |
||

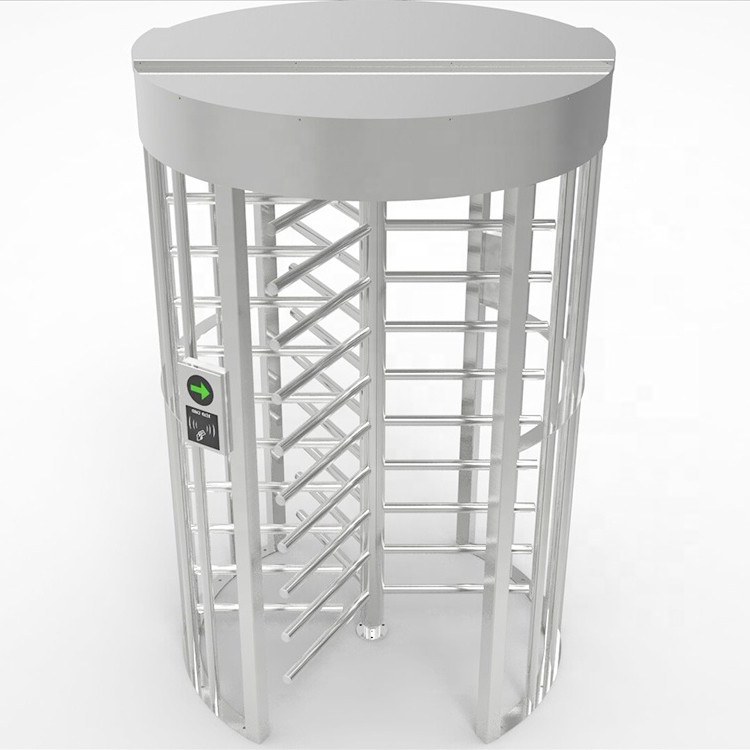

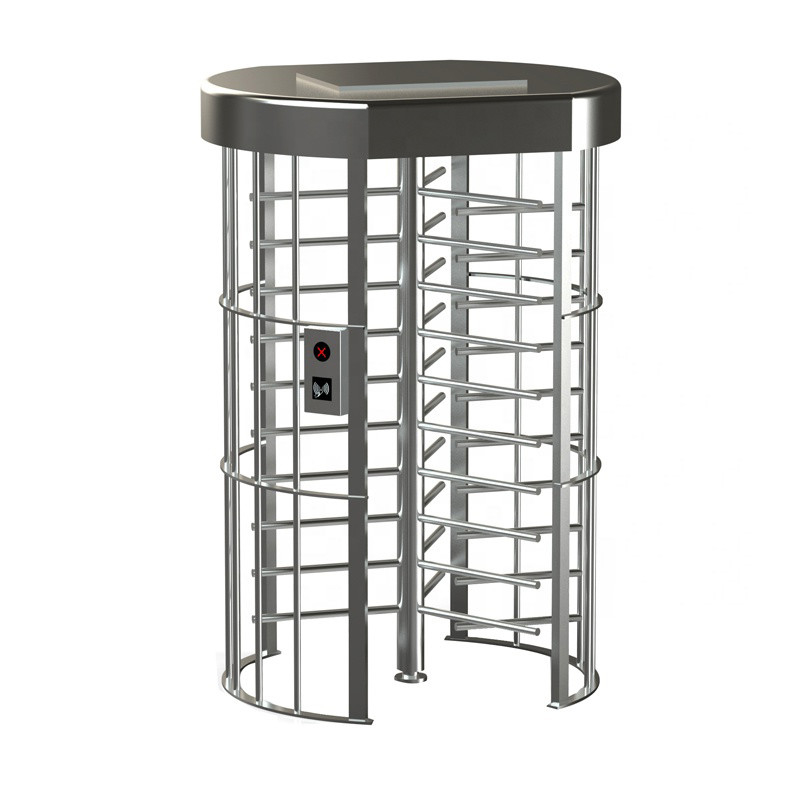

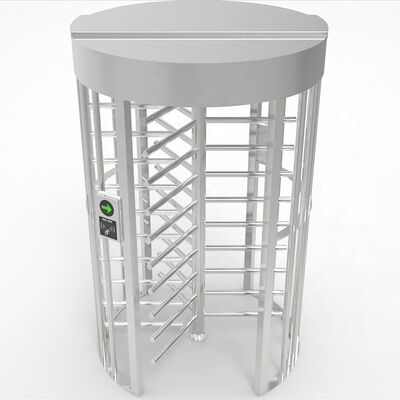

Single Lane Full Height Turnstile Gate Fingerprint Card Access Control
Introduction Of Full Height Turnstile:
The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control for office or building which realize intelligent pedestrian control and management. .The impenetrable construction eliminates any un-authorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested. And the turnstile can also work with push button, fingerprint and face recognition access control system.
This full-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests, we built-in standard electrical interface to best-fit customer easier using magnetic card, barcode, RFID cards integrated .This system provides civilized, well-organized pass management .Considering Fire emergency happen, the system built-in unique fire-control interface, turnstile will be in free enter/exit working mode when power off.
Basic parameters:
| Dimensions | L1500 mm X W1500mm X H2300 mm |
| Cabinet material | 38 round tube, 1.5mm thick SUS304 |
| Channel width | ≤ 600mm |
| Ambient temperature | -20 degrees to 60 degrees |
| Working environment | indoor and outdoor (outdoor canopy) |
Technical Parameters:
| Input voltage | 100V~240V |
| Driving voltage | 24V |
| Equipment power | 30W |
| Response time | 0.2S |
| Passing speed | 30 people / min |
| Communication interface | RS485 |
| Communication distance | less than 1200m |
| Open brake signal input | dry contact |
| Switching door time | Less than 1S |
Functions & Features Of Full Height Turnstile:
1) Automatically low noise mechanism core equipped, highly cost-performance
2) Sense positioning, reducing mechanical impact make lifetime longer
3) Operating efficiency, 1~2 seconds open & close
4) Lowest Noise : No matter in operating or outside control, Noise control under 30db
5) Self-checking and Alarm warning for maintain
6) Resetting: System cancel authorized pass if passenger delayed pass
Anti-following : prevent illegal passing
Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay
9) The rotary wings will be locked automatically if the system do not receive IR signal
10) Multi-passage for variety application demands , cover 99% needs on earth
11) Programmable signal separate control : pass time,pass speed etc. parameter
12) RS232/RS485 interface meet all kind of communications or wireless connection
Compatible IC/ID card ,flexible couple
Long-distance management through COMPUTER
15) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm
Access avalable:
1. Card readers
2. Metal detection
3. Electronic/LCD counters
4. Fail-open or fail-secure locking
5. Push-button and wireless remotes
6. Manual key override both directions
7. Indicator lights
