| Place of Origin: | China |
|---|---|
| Brand Name: | KOMAI |
| Certification: | CE,ROHS,FCC |
| Model Number: | KF-S120-04 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden box packing |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T, Western Union, Cash |
| Supply Ability: | 5000pcs/month |
| Material: | SUS304 Or Carbon Steel Powder Coating | Power Supply: | 50/60Hz,AC110-220V |
|---|---|---|---|
| Color: | SSB(US32D)- Stainless Steel Brushed / Powder Coating | Communication Interface: | RS485(Distance,Relay/RS485 |
| Product Name: | China High Quality Pedestrian Security Full Height Turnstile | Dimension: | 1630 * 1337 * 2240mm |
| Power Consumption: | 40W | Certification: | ISO,CE,RoHS |
| Highlight: | 24V Full Height Turnstiles,40W Full Height Turnstiles,40W security turnstile gate |
||

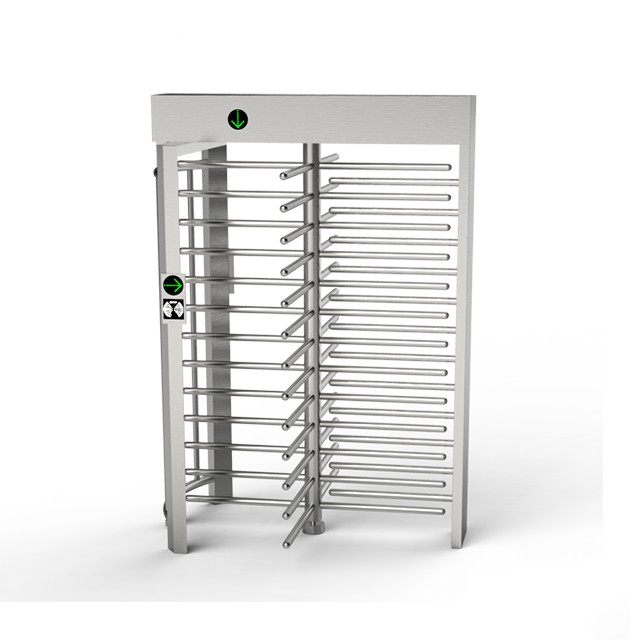

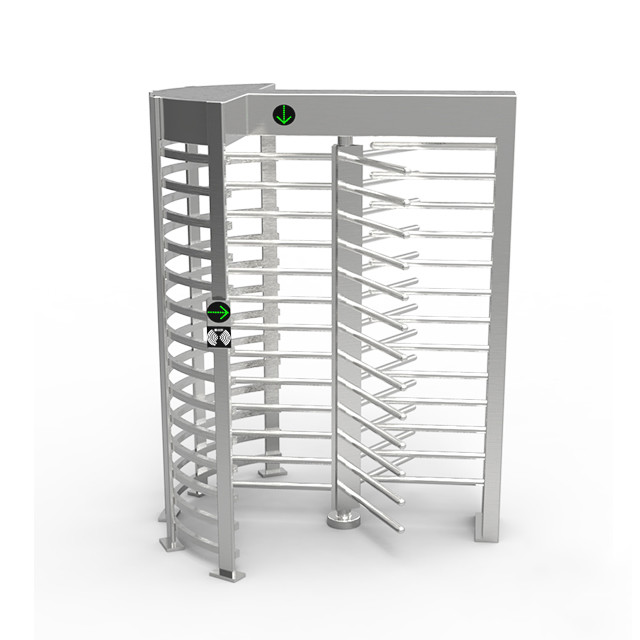

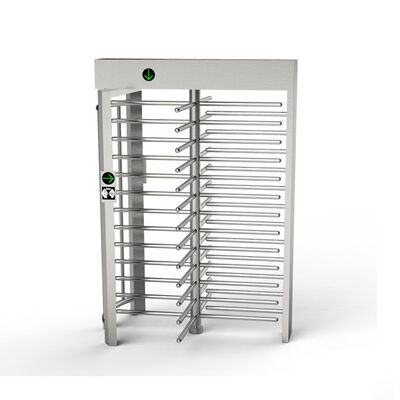

304 Stainless Steel Full Height Access Control Turnstile Gate
Introduction:
This full-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .Considering unique requests, we built-in standard electrical interface to best-fit customer easier using magnetic card, barcode, RFID cards integrated .This system provides civilized, well-organized pass management .
Considering Fire emergency happen, the system built-in unique fire-control interface, turnstile will be in free enter/exit working mode when power off.
Features:
1) Automatically low noise mechanism core equipped, highly cost-performance
2) Sense positioning, reducing mechanical impact make lifetime longer
3) Operating efficiency, 1~2 seconds open & close
4) Lowest Noise : No matter in operating or outside control, Noise control under 30db
5) Self-checking and Alarm warning for maintain
6) Resetting: System cancel authorized pass if passenger delayed pass
7) Anti-following : prevent illegal passing
8) Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay
9) The rotary wings will be locked automatically if the system do not receive IR signal
10) Multi-passage for variety application demands , cover 99% needs on earth
11) Programmable signal separate control : pass time,pass speed etc. parameter
12) RS232/RS485 interface meet all kind of communications or wireless connection
13) Compatible IC/ID card ,flexible couple
14) Long-distance management through COMPUTER
15) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm
Control & Interfaces
1. Card readers
2. Metal detection
3. Electronic/LCD counters
4. Fail-open or fail-secure locking
5. Push-button and wireless remotes
6. Manual key override both directions
7. Indicator lights
Technical Parameters:
| Input voltage | 100V~240V |
| Driving voltage | 24V |
| Equipment power | 30W |
| Response time | 0.2S |
| Passing speed | 30 people / min |
| Communication interface | RS485 |
| Communication distance | less than 1200m |
| Open brake signal input | dry contact |
| Switching door time | Less than 1S |
Function:
1.Full height Security Turnstile has pass prompt, booster rotation!
2.Full height Security gate has smooth running and no noise
3.Full height security turnstile gates enjoy free passing setting
4.Buffering and anti collision, anti reverse passing,Anti-follow,Auto reset function.
5.Uni-directional and Bi-directional pass modes for optional
6.Full height turnstile adopt optical working principle. Absolutely assure one card for one passing.
7.Full height Security Turnstile with failure self-checking and alarm functions.so it is convenient operation and maintenance.
8.Can be connected with any control device and receive the output control signal ,can be controlled by external button or remote control.
9.Door opens automatically when power off to meet the fire safety management
10.Memory function:accurate signal memory, continuous to receive many times the legitimate signal, door will automatic reset after the last man passed, greatly improve the speed of passing.
11. Normal open and normal close, automatic revolving door can be also controlled via external button.
FAQ:
1. Will you install the channel lock for the first time?
Answer: on channel brake installation is very simple, just put the product fixed well, main machine and insert 110V/220V power supply, can normal use, if you need to connected to the Internet, only need to use a network line can be received from the main computer, we will provide all the one-on-one phone technology Guidance services.
2. Can machines be used outside?
Answer:It can be used outside. We all have waterproof function.
3. What is the warranty for the machine?
Answer:(1) we guarantee all goods quality assurance for two years.
(2) within the two years warranty time,if the machine have problem,we can offer you the accessories
(but you pay the freight cost)
4. When will you make the delivery?
Answer:regular products:(3-5 days),irregular products:communication when you place the order.
5. How does your factory control the quality?
Answer:We always attach great importance to quality controlling from the beginning to the ending.
6. What is your MOQ?
Answer:Any quantity is acceptable for your order. And the price is negotiable for big quantity.
7. Payment term?
Answer:30% by T/T in advance.70% by T/T before delivery.
