| Place of Origin: | China |
|---|---|
| Brand Name: | KOMAI |
| Certification: | ISO, Rohs, CE, FCC |
| Model Number: | KM-SW02 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box Package |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs per month |
| Leafs: | Acrylic | Lane Width: | 600-1200mm |
|---|---|---|---|
| Material: | SUS 304 Stainless Steel | Size: | 1200*280*980mm |
| Bicycle Pass: | Available | ODM/OEM: | Acceptable |
| Highlight: | AISI 304 Swing Barrier Turnstile,Speedlane Swing Barrier Turnstile,AISI 304 swing gate turnstile |
||

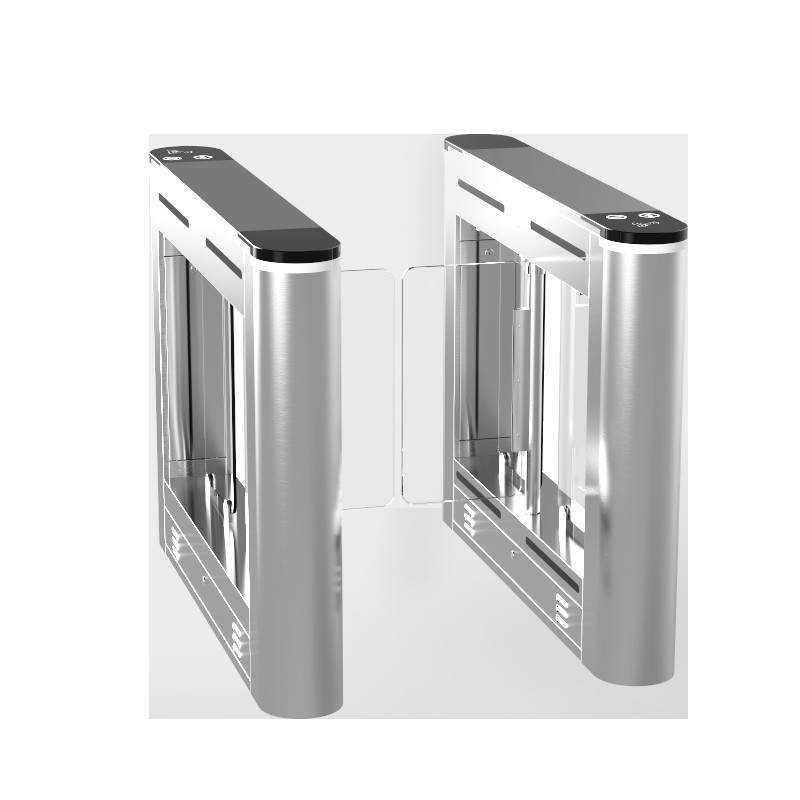

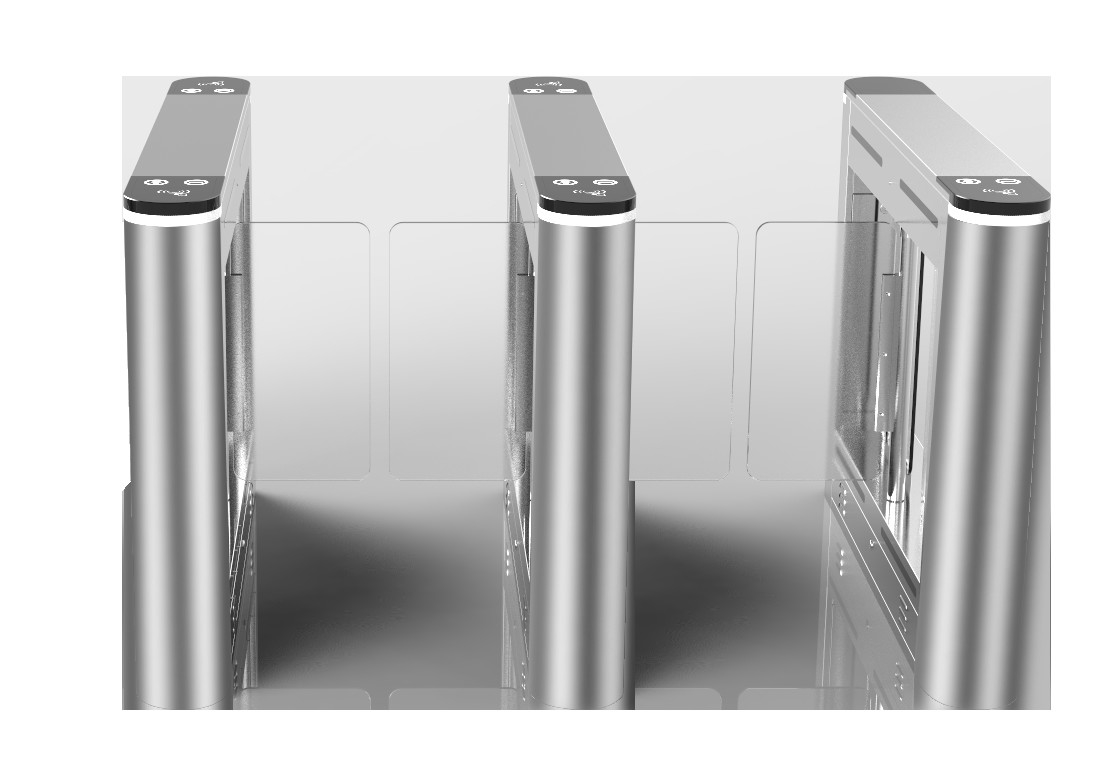

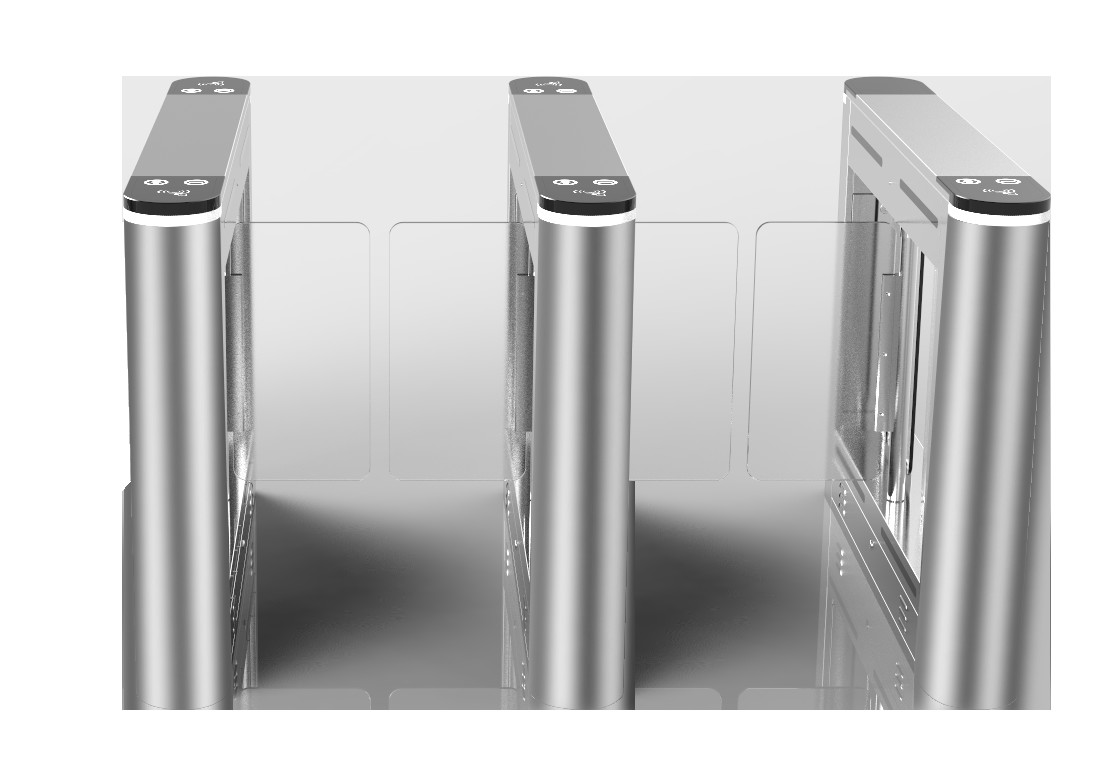

Elegant Speedlane Optical AISI 304 Stainless Steel Swing Gate Turnstile
Introduction:
All the gates models are space efficient security turnstile gate, with a compact design,yet offer sufficient space to integrate any access control system.They can be mounted with display, passage counter,card reader,token operation traffic lights,command console,alarm system against unauthorized entries,interfaced with a PC through a RS232(RS485,TCP-IP) line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in case of crisis evacuations.Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in.for example,a reception area.Our gates are used in applications including stadiums and arenas,perimeter and interior security,recreation and amusement parks,retail crowd control,transit fare collection and lobby access control.
Specification:
| 1 | Power | AC220C±10V,50/60HZ; |
| 2 | Operating Temperature | -45℃-60℃ |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Passage Width | 600mm-1000mm (optional) |
| 5 | Passing Speed | Normally open-50persons/min; Normally closed-40persons/min |
| 6 | Manufacturing Technique | CNC laser cutting |
| 7 | Motor | DC Brushless motor or servo motor 140W/24V |
| 8 | Gate Opening and Closing time | ≤ 0.2S |
| 9 | Infrared Sensors | 5-10 Pairs |
| 10 | Working environment | indoor and outdoor(added the rainshed ) |
| 11 | Motor Operation Speed | 1600R/Min |
| 12 | Communication Distance | ≤1200M |
| 13 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
| 14 | Communication Connection | RS485 Communication |
| Barrier Material | Acrylic glass, SS304 and so on | |
| 15 | Material | Stainless steel 304,thickness is no less than 1.5mm |
| 16 | Running Life | 5--8 Million(Continuous Opening and Closing Operation) |
| 17 | Protect Level | IP65 |
| 18 | Size | 1200/1400*280/180*980mm (customized) |
| 19 | Colour | SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Color you like |
| 20 | Operation Place |
Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
OPERATING MODES:
l Single passage in the set direction
l Bi-directional single passage
l Free passage in the direction
l Always free or locked
MATERIALS:
l Housing:Made in stainless AISI 304
l Barrier swings-Acrylic,PC,stainless steel frame
FEATURES AND FUNCTIONS:
1) Use of RFID IC cards,ID cards,Barcode or magnetic cards as automatic identification system and achieve access attendance,fees or function.
2) A direction indicator showed that the pedestrian access to the current status and guide pedestrian correctly and in smooth passage.
3) Semi-auto mode:After reading card the passenger pushes the arm by hand until he goes through the barriers and the arm arrives in home position.
4) Full-auto mode:The passenger pushes the arm at a little strength after reading card,and the arm will automatically rotate forward by motor power until the arm arrives in home position.
5) Pure mechanical mode:The passenger pushes the arm by hand until he goes through the barriers.
6) Single or bi-directional function in mechanical and electrical versions.
7) Automatic reset of barrier arms after each passage.
8) Cable or wireless remote control panel key override control for emergency situations.Automatically arm drop down when power off or emergency.
9) Adjustable time out delay.
FAQ:
1. What is the strength of your company in this industry?
We are the top 10 in turnstile field in China, more than 80 employees and over 15 senior R & D technical persons to ensure the gate could work well in different environment, power supply and current. Experienced foreign trade business team can help you to deal with any emergency before, during and after the sales. The brand KOMAI is highly recognized in Southeast Asia.
2. What is your pricing strategy?
For overseas markets, we will use competitive prices to support a strong distributor in each area, and gradually establish
overseas service agency, as a good opportunity, some long-term cooperation partners will compete with us to sign the annual cooperation agreement (including execution price).
3. How about Quality Control?
IOS9001 could help us to realize the factory management control and our ERP system can help us to control the cost of procurement links effectively, so we can provide a good price. New test system could do uninterrupted fatigue testing to ensure its using life. Pre-shipment inspection and third-party supervision are available.
4. How about some special design?
That’s our advantage of design new gate or barrier according to your real situation to make different size, software and features.Video call available during design and communicate in time during this procedure.
5. Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.
6. What time do you need to delivery?
Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order quantity. We could talk about this question before final payment.
7. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.
Customized products: 50% deposit, 50% balance payment before shipment.
Contract amount more than USD15000: 50% deposit, 50% balance payment before shipment.
T/T, PayPal, Alibaba Credit guarantee order
8. How to ship?
By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.
9. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
10. How long is your warranty period?
13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.
