| Place of Origin: | China |
|---|---|
| Brand Name: | KOMAI |
| Certification: | ISO, Rohs, CE, FCC |
| Model Number: | KM-SW09 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box Package |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs per month |
| Leafs: | Acrylic Or 304 Stainless Steel | Lane Width: | 600-1200mm |
|---|---|---|---|
| Size: | 141/168 * 980mm | Communication Interface: | RS485 / Relay |
| Motor: | DC Motor | Mechanical Life: | 500000 Times |
| Motor Voltage: | DC 24V | Passing Speed: | >35 Person /min |
| Highlight: | RS485 Interface supermarket entrance gates,900mm Supermarket Entrance Gates,900mm supermarket entry gates |
||

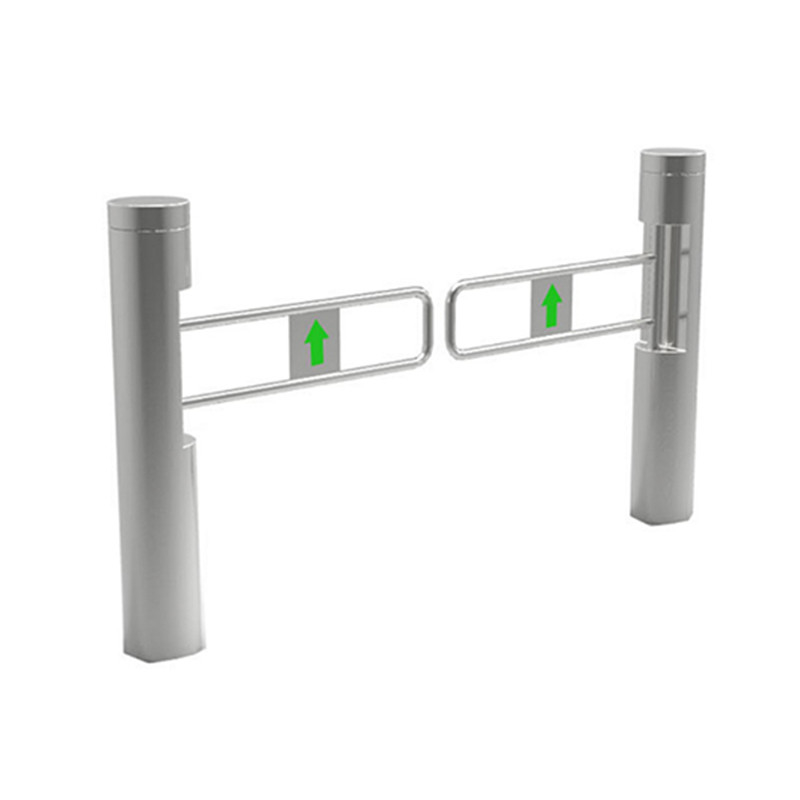

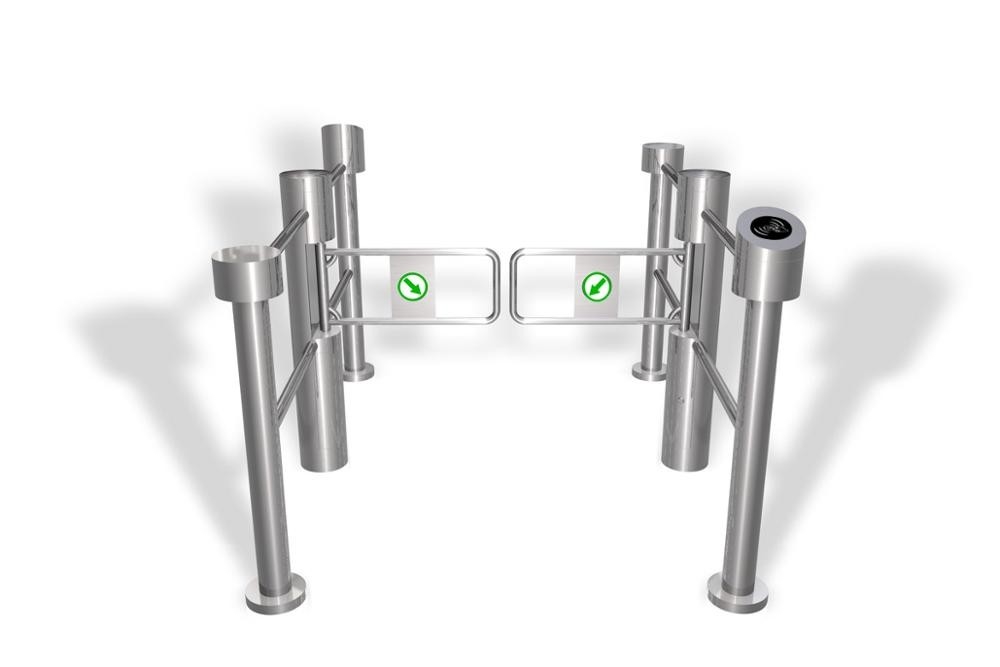

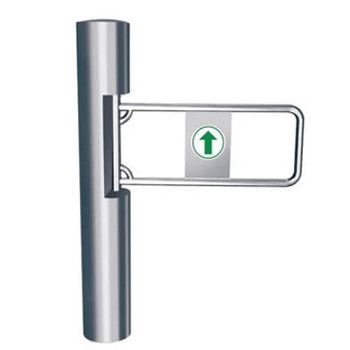

RS485 Interface Supermarket Automatic Gate Turnstile Entry Systems
Introduction:
Our swing barrier is designed to control pedestrian entering or exiting restricted areas, use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design, suitable for both indoors and outdoors. To be the best choice for the places like park, station, exhibition hall, gymnasium and so on, can fulfill the functions like entrance control, time attendance, pedestrian volume control and fare collection function etc.
Functions:
1. Within direction indicator to show the current status of the passage to pedestrians, guide pedestrians to pass correctly and quickly
2. Within automatic power-off function when the system is powered off, the access gate is opened to form a barrier-free access
3. Using several pairs of infrared sensors to prevent pedestrians from illegally entering the passage, protecting pedestrians from passing the passage smoothly and preventing trailing functions.
4. Within automatic reset function, after reading the card, if the pedestrian does not pass within the time specified by the system, the system automatically cancels the permission of this pass, and the reset time value can be set online.
5. There is a LED indicator light on the cover of the box. When the valid card is swiped, there will be a green arrow to indicate the direction of passing;
6. Can be used in the same system with other styles of access gates.
7. It has the function of fault self-check and alarm prompt, which greatly facilitates maintenance and use. 8. It has a unified and standard external electrical interface, which can be connected with other reading and writing devices for easy integration, and remote control and management can be achieved through a management computer.
9. It can be expanded into an automatic identification system to realize functions such as access control, attendance, and charges.
10. Can be used with other types of channel products.
Our Advantages:
1. Professional solutions.
2. Competitive and reasonable price
3. Advanced technology
4. High quality
5. Fast delivery
6. Best service
7. High reputation of this industry
8. Wonderful team
9. The product have a wide range application
10. Popular for foreign market
Parameter:
| Technical Parameters | |
| Product Name | DC Motor Swing Barrier Turnstile |
| Model | KM-SW09 |
| Brand | KOMAI Automation |
| Design Size | 141/168mm * 980 mm |
| Drive Motor | DC Motor |
| Turning of the gate | one-way / two-way |
| Working environment | Indoor and outdoor (shed) |
| Structure | Frame structure / Stainless steel housing |
| Service life | continuous opening and closing more than 5 million times |
| Gate components | chassis, movement, control board and power supply |
| Supplu Voltage | AC220±10%,50HZ |
| Bezel telescopic arm length | 600-1200mm |
| The time required to enter the common state after power on | 3 seconds |
| Driving Motor | 24V |
| Tickness | 2.0mm |
| Swing arm transmission angle | 180 degrees |
| Automatic reset time after failure | 10 seconds |
| Opening time | 0.2s |
| Lane width | ≤1200mm |
| Communication Interface | RS485 (distance ≤ 1200 m), TCP / IP |
| Input interface | Relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
| Working environment | indoor and outdoor (recommended with rainproof shed) |
| Travel speed | 35 persons/min |
| Temperature | -10ºC-70ºC |
| Material | 304 # stainless steel |
| Channel width | <900mm |
| Relative humidity | -10 ° C ~ 60 ° C, relative humidity 5% ~ 95%, no condensation |
| Inspection port | 2 |
Features:
1. Within direction indicator to show the current status of the passage to pedestrians, guide pedestrians to pass correctly and quickly
2. Within automatic power-off function when the system is powered off, the access gate is opened to form a barrier-free access
3. Using several pairs of infrared sensors to prevent pedestrians from illegally entering the passage, protecting pedestrians from passing the passage smoothly and preventing trailing functions.
4. Within automatic reset function, after reading the card, if the pedestrian does not pass within the time specified by the system, the system automatically cancels the permission of this pass, and the reset time value can be set online.
5. There is a LED indicator light on the cover of the box. When the valid card is swiped, there will be a green arrow to indicate the direction of passing;
6. Can be used in the same system with other styles of access gates.
7. It has the function of fault self-check and alarm prompt, which greatly facilitates maintenance and use. 8. It has a unified and standard external electrical interface, which can be connected with other reading and writing devices for easy integration, and remote control and management can be achieved through a management computer.
9. It can be expanded into an automatic identification system to realize functions such as access control, attendance, and charges.
10. Can be used with other types of channel products.
