| Place of Origin: | China |
|---|---|
| Brand Name: | KOMAI |
| Certification: | ISO, Rohs, CE, FCC |
| Model Number: | KM-SW11 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box Package |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs per month |
| Leafs: | Acrylic Or 304 Stainless Steel | Lane Width: | 600-1200mm |
|---|---|---|---|
| Size: | 141/168 * 980mm | Communication Interface: | RS485 / 12V Relay |
| Motor: | DC Motor | Mechanical Life: | 500000 Times |
| Motor Voltage: | DC 24V | Passing Speed: | >40 Person /min |
| Highlight: | SS304 Supermarket Swing Gate,DC24V Supermarket Swing Gate,SS304 supermarket turnstile |
||

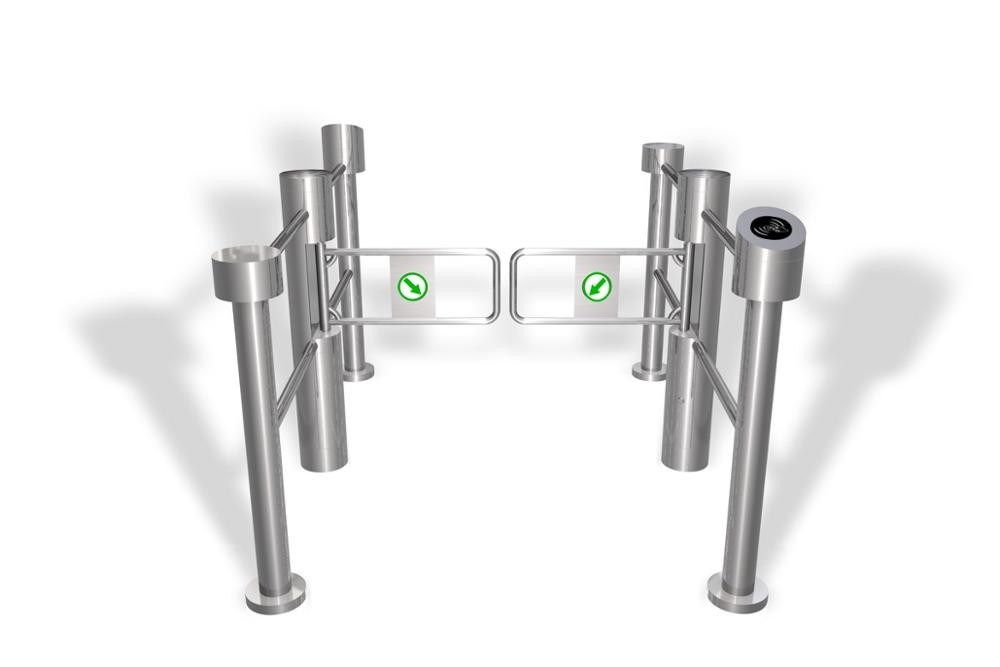

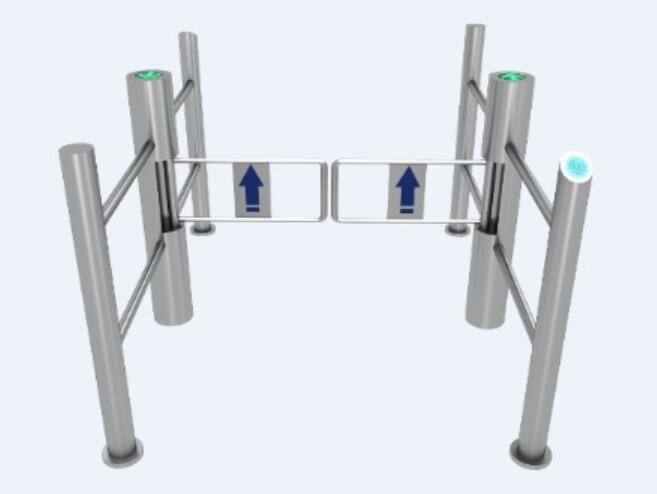

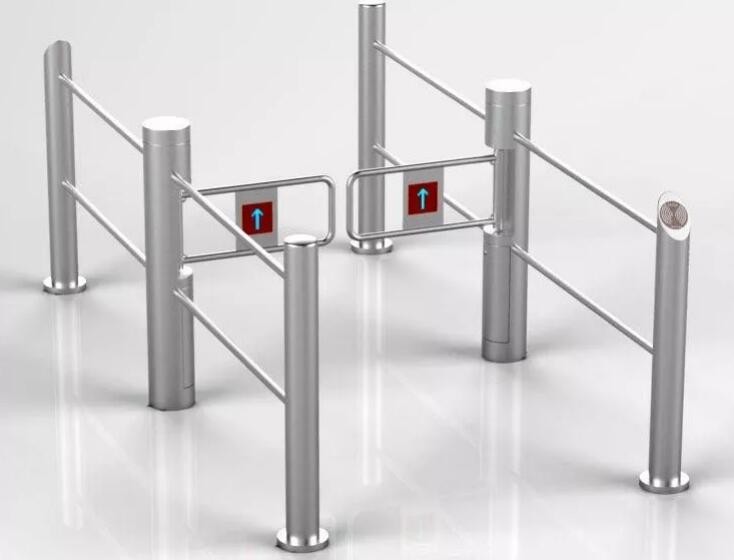

Infrared Sensor Free Pass 304 Stainless Steel Supermarket Automatic Gate
Introduction:
All the gates models are space efficient security turnstile gate, with a compact design,yet offer sufficient space to integrate any access control system.They can be mounted with display, passage counter,card reader,token operation traffic lights,command console,alarm system against unauthorized entries,interfaced with a PC through a RS232(RS485,TCP-IP) line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in case of crisis evacuations.Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in.for example,a reception area.Our gates are used in applications including stadiums and arenas,perimeter and interior security,recreation and amusement parks,retail crowd control,transit fare collection and lobby access control.
Functions:
1) The whole system runs smoothly. Long-life performance, high operation dependability and fast response.
2) Alarm function, in case of illegal intrusion and reverse intrusion.
3) Infrared sensor to prevent pedestrians from getting clamped.
4) Anti-breakthrough function: The gate is locked automatically until opening signal received.Or Use IR Sensor Mode (Automatic open when the people pass).
5) Anti-trailing function: the turnstile will lock if there is forced entry without swiping the RFID card.
6) LED indicator.
7) When power is off, optical turnstile will open automatically, which complies with fire safety requirements.
Extendibility:
1. LED counter display
2. Casing and gate size can be lengthened
3. Lgic judgment by photocells (8 pair or 10 pairs)
4. Speech reminder
5. Normal close or normal open adjustable
6. Led Light,sound alarm.
Parameter:
| Technical Parameters | |
| Product Name | DC Motor Swing Barrier Turnstile |
| Model | KM-SW09 |
| Brand | KOMAI Automation |
| Design Size | 141/168mm * 980 mm |
| Drive Motor | DC Motor |
| Turning of the gate | one-way / two-way |
| Working environment | Indoor and outdoor (shed) |
| Structure | Frame structure / Stainless steel housing |
| Service life | continuous opening and closing more than 5 million times |
| Gate components | chassis, movement, control board and power supply |
| Supplu Voltage | AC220±10%,50HZ |
| Bezel telescopic arm length | 600-1200mm |
| The time required to enter the common state after power on | 3 seconds |
| Driving Motor | 24V |
| Tickness | 2.0mm |
| Swing arm transmission angle | 180 degrees |
| Automatic reset time after failure | 10 seconds |
| Opening time | 0.2s |
| Lane width | ≤1200mm |
| Communication Interface | RS485 (distance ≤ 1200 m), TCP / IP |
| Input interface | Relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
| Working environment | indoor and outdoor (recommended with rainproof shed) |
| Travel speed | 35 persons/min |
| Temperature | -10ºC-70ºC |
| Material | 304 # stainless steel |
| Channel width | <900mm |
| Relative humidity | -10 ° C ~ 60 ° C, relative humidity 5% ~ 95%, no condensation |
| Inspection port | 2 |
OPERATING MODES:
1) Single passage in the set direction
2) Bi-directional single passage
3) Free passage in the direction
4) Always free or locked
MATERIALS:
1) Housing:Made in stainless AISI 304
2) Barrier swings-Acrylic,PC,stainless steel frame
Shipping and packing:
1) In order to work shipping freight, It will be appreciated by you to give us the nearest air port,sea
Port or specific address. We mainly provide 2 or 3 shipping ways--By sea (economicest way),
Air(medium) and by Express( Fastest way and door to door).
2) All of our products delivery by Sea or Air,the pack material is Poly film+Carton,and this pack way has been tested many many time in different transportation situation from our Simulated transport machine(see my attachment).it shows a good packing method from our many years experience.
FAQ:
1. What is the strength of your company in this industry?
We are the top 10 in turnstile field in China, more than 80 employees and over 15 senior R & D technical persons to ensure the gate could work well in different environment, power supply and current. Experienced foreign trade business team can help you to deal with any emergency before, during and after the sales. The brand KOMAI is highly recognized in Southeast Asia.
2. What is your pricing strategy?
For overseas markets, we will use competitive prices to support a strong distributor in each area, and gradually establish
overseas service agency, as a good opportunity, some long-term cooperation partners will compete with us to sign the annual cooperation agreement (including execution price).
3. How about Quality Control?
IOS9001 could help us to realize the factory management control and our ERP system can help us to control the cost of procurement links effectively, so we can provide a good price. New test system could do uninterrupted fatigue testing to ensure its using life. Pre-shipment inspection and third-party supervision are available.
4. How about some special design?
That’s our advantage of design new gate or barrier according to your real situation to make different size, software and features.Video call available during design and communicate in time during this procedure.
5. Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.
6. What time do you need to delivery?
Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order quantity. We could talk about this question before final payment.
7. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.
Customized products: 50% deposit, 50% balance payment before shipment.
Contract amount more than USD15000: 50% deposit, 50% balance payment before shipment.
T/T, PayPal, Alibaba Credit guarantee order
8. How to ship?
By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.
9. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
10. How long is your warranty period?
13 months, add 10% of contract amounts since the second year,15% of the contract amounts since the third year.
