| Place of Origin: | China |
|---|---|
| Brand Name: | SOMAC |
| Certification: | ISO, Rohs, CE, FCC |
| Model Number: | 722 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union, Cash |
| Supply Ability: | 5000pcs/month |
| Communication: | TCP / IP : 10 / 100 Base-T ,Wiegand 26/34 | Product Name: | Finger Vein Access Control Standalone Terminal |
|---|---|---|---|
| Output Relay: | 30VDC, 1A | Fingervein Template Capacity: | 12000 |
| Wiegand Inputs: | 26/34 Bits Wiegand Reader | User Capacity: | 10000 |
| Highlight: | IP65 Biometric Access Control System,12000 Biometric Access Control System,IP65 standalone fingerprint access control |
||

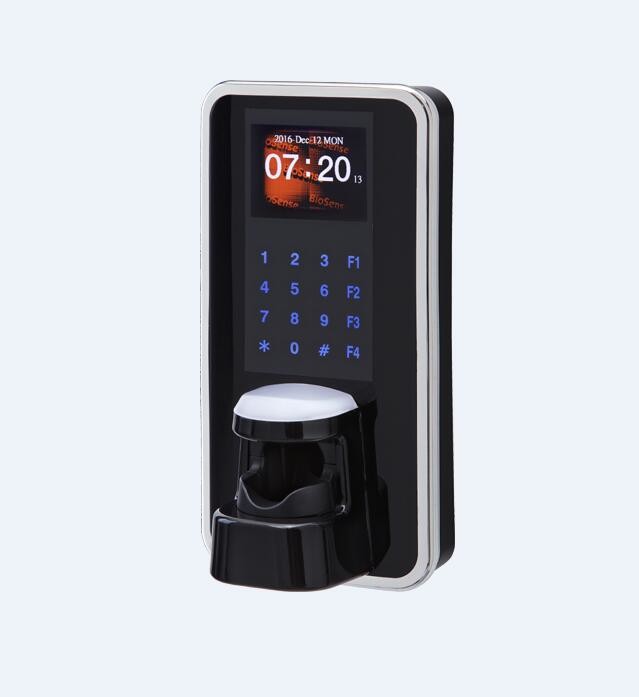

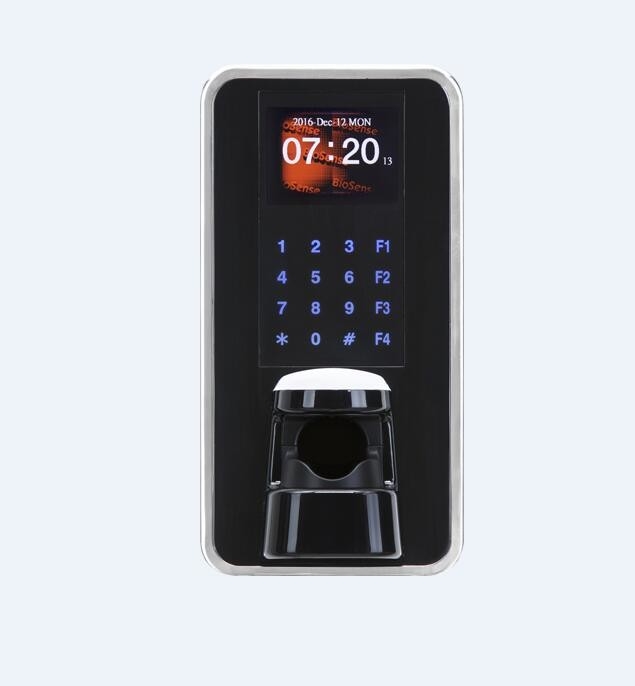

IP65 Certificated Finger Vein Access Control Standalone Terminal
Introduction:
Finger Vein Access Control Standalone Terminal
Finger vein recognition access controller, which is next generation biometric technology. The technology enables the device can be applied in high security environments such as bank and government agencies. Finger vein controller features an IP65 certified weatherproof exterior. IP65 protection allows system designers to place the terminal in both indoor and outdoor environments. It design either access control and Time attendance. CSS-722 also has built-in friendly web server, and it integrated with our SOMAC centralized software.
Features:
Finger Vein Recognition Access Control Terminal with Hitachi Finger Vein module
FEATURES HIGHLIGHTS
400 sets of the function key.
Anti-pass back / anti duress.
Basic time attendance (First IN / Last OUT).
Color screen with touch keypad.
LOGs data real-time PUSH.
Indoor and outdoor use (IP65 certificated).
Standalone, Web-based management, and network capability.
Support DHCP for easy setup.
GENERAL DATA
Software Application : SoMac / Browser
Verification Mode : Fingervein / Card / PIN / Match on card
Proximity : EM / Mifare / HID
Fingervein Module : HITACHI H1EAX (ISO/IEC 19795-1)
Fingervein Template Capacity : 12,000
1:1 Verification Time : 1 sec
1:1,000 Identification Time : 1.5 sec
FAR (False Acceptance Rate) : 0.01%
FRR (False Rejection Rate) : 0.0000067%
User Capacity : 10,000
Function Keys : 400 SET
Time Sets / Time Zones / Group: 255 / 120 / 255 SET
Holiday Dates : 100 SET
Access& Event Logs / System Logs : 65536 / 2688
Inputs: 3 Inputs, (1) Exit button
Relay Outputs : 1 output for Lock (COM / NO / NC)
Web Base Management : Yes
Support real time log : Yes
PUSH methodology : Yes
Wiegand Inputs : 26/34 bits Wiegand reader
IP Mode : Static IP / AUTO IP (DHCP Client)
LED Indicators : 3 Colours (RGB)
Speaker Indication : Optional
Buzzer : Single Tone
TFT Color LCD : 2.8"
Capacitive Touch Keys : 4 x 4
Anti-Tampering Switch : Yes
Specification:
COMMUNICATION DATA
TCP / IP : 10 / 100 Base-T
Wiegand : 26 / 34 bits
ELECTRICAL DATA & CONDITIONS
Power Consumption : 500 mA ± 5%
Operation Voltage : 9 ~ 24VDC / 1A
Output Relay : 30VDC, 1A
Operation Temperature : 0°C ~ 50deg;C
Operation Humidity : 5% ~ 80% RH
PHYSICAL DATA
Dimension (mm) : 120 x 235 x 85
Weight : 0.7 kg
Installation : Indoor / Outdoor (IP65 weatherproof)
INTERNATIONAL STANDARDS & WARRANTY
Certification : CE, FCC, ROHS
Warranty : 2 Years (Fingerprint module : 1 year)
