| Place of Origin: | China |
|---|---|
| Brand Name: | KOMAI |
| Certification: | ISO, Rohs, CE, FCC |
| Model Number: | KM-SW17 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box Package |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs per month |
| Leafs: | Acrylic Or 304 Stainless Steel | Lane Width: | 600-1000mm |
|---|---|---|---|
| Size: | 1200*200*1000mm | Communication Interface: | RS485/TCP/IP/Relay |
| Motor: | DC Motor | Mechanical Life: | 5000000 Times |
| Bicycle Pass:: | Yes | Passing Speed: | >35 Person /min |
| Highlight: | Bidirectional Swing Barrier Turnstile,AC220V Swing Barrier Turnstile,600mm Lane Barrier Turnstile Gate |
||

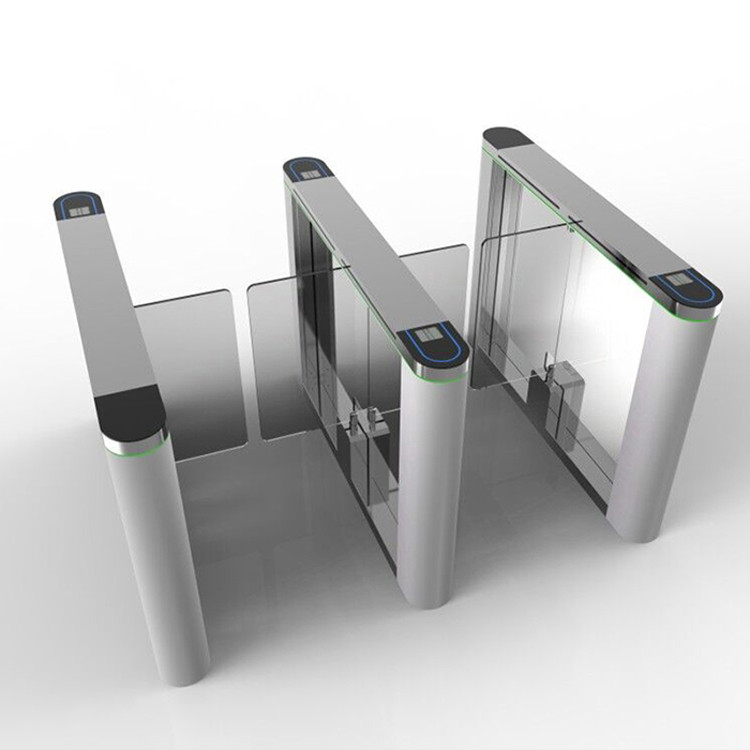

Bidirectional Security Doors Swing Barrier Turnstile
Introduction:
Our swing barrier is designed to control pedestrian entering or exiting restricted areas, use SS304 stainless steel for the whole case, and adopt anti-damp, dust-proofing, water-proofing international standard design, suitable for both indoors and outdoors. To be the best choice for the places like park, station, exhibition hall, gymnasium and so on, can fulfill the functions like entrance control, time attendance, pedestrian volume control and fare collection function etc.
Parameter of Security Doors Swing Barrier Turnstile:
| Technical Parameters | |
| Product Name |
Security Doors Swing Barrier Turnstile |
| Model | KM-SW17 |
| Brand | KOMAI Automation |

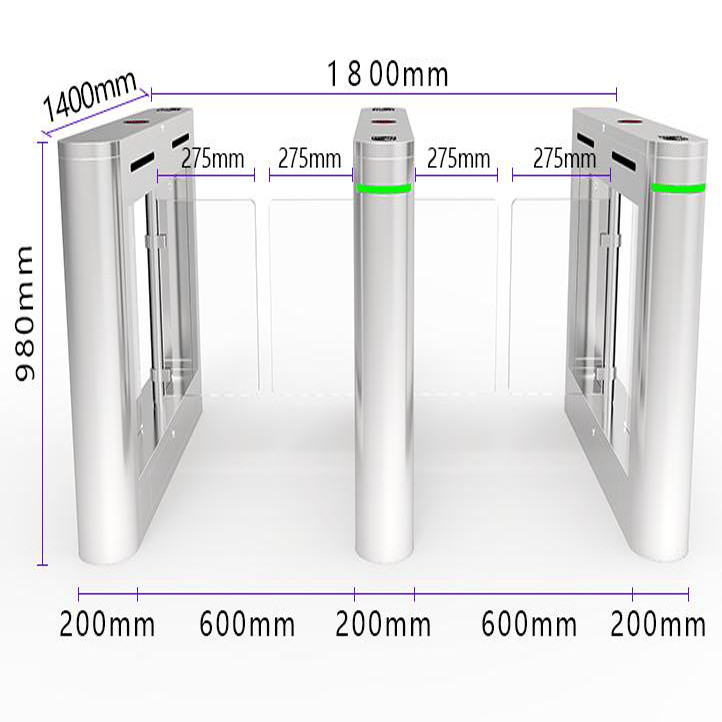

| Design Size | 1200*200*1000 mm |
| Drive Motor | DC Motor |
| Turning of the gate | one-way / two-way |
| Working environment | Indoor and outdoor (shed) |
| Structure | Frame structure / Stainless steel housing |
| Service life | continuous opening and closing more than 3 million times |
| Gate components | chassis, movement, control board and power supply |
| Supplu Voltage | AC220±10%,50HZ |
| Bezel telescopic arm length | 550mm |
| The time required to enter the common state after power on | 3 seconds |
| Driving Motor | 24V |
| Tickness | 2.0mm |
| Swing arm transmission angle | 180 degrees |
| Automatic reset time after failure | 10 seconds |
| Opening time | 0.2s |
| Lane width | ≤1200mm |
| Communication Interface | RS485 (distance ≤ 1200 m), TCP / IP |
| Input interface | Relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
| Working environment | indoor and outdoor (recommended with rainproof shed) |
| Travel speed | 35 persons/min |
| Temperature | -10ºC-70ºC |
| Material | 304 # stainless steel |
| Channel width | <900mm |
| Relative humidity | -10 ° C ~ 60 ° C, relative humidity 5% ~ 95%, no condensation |
| Inspection port | 2 |
Features of Security Doors Swing Barrier Turnstile:
1. Provide normally open / normally close to satisfy management request.
2. Compatible with RF card readers, bar code readers, biometric readers, push button...
3. Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.
4. Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer
5. (Optional) Support gate open while power failure and recover N/C mode after power on.
6. (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)
7. (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.
Function of Security Doors Swing Barrier Turnstile:
1.Within direction indicator to show the current status of the passage to pedestrians, guide pedestrians to pass correctly and quickly
2. Within automatic power-off function when the system is powered off, the access gate is opened to form a barrier-free access
3. Using several pairs of infrared sensors to prevent pedestrians from illegally entering the passage, protecting pedestrians from passing the passage smoothly and preventing trailing functions.
4. Within automatic reset function, after reading the card, if the pedestrian does not pass within the time specified by the system, the system automatically cancels the permission of this pass, and the reset time value can be set online.
5. There is a LED indicator light on the cover of the box. When the valid card is swiped, there will be a green arrow to indicate the direction of passing;
6. Can be used in the same system with other styles of access gates.
7. It has the function of fault self-check and alarm prompt, which greatly facilitates maintenance and use.
FAQ:
1. How about your company's actual strength?
We are the professional manufacturer in turnstiles in China. We have more than 100 employees, a R&D group with 5 people, 1 HQ office and 3 branches. Factories and office buildings are 2000 square meters in total.
2. How about the quality of your products?
We are in the highest level of quality with the most competitive price. For example, we use international standard China-Japan Baoxin stainless steel 304 stainless steel, Taiwan Minwei electric supplier, belt import from German, 3M clue import from America etc.
3. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Generally standard products need 10 working days.
The customized products need 20 working days.
4. How long is your warranty period?
12 months. Life time spare parts.
