| Place of Origin: | China |
|---|---|
| Brand Name: | KOMAI |
| Certification: | ISO, Rohs, CE, FCC |
| Model Number: | KM-SW032 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box Package |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs per month |
| Leafs: | Acrylic Or Temperated Glass | Lane Width: | 600-1200mm |
|---|---|---|---|
| Material: | SUS 304 Stainless Steel | Size: | 1600*120*990mm |
| Bicycle Pass: | Available | ODM/OEM: | Acceptable |
| Opening Method: | RFID Card Reader Or Face Recognition | Direction: | Bidirectional |
| Highlight: | Waist Height Turnstile 35P/M,Bidirectional Waist Height Turnstile,SUS 304 Waist High Turnstile |
||

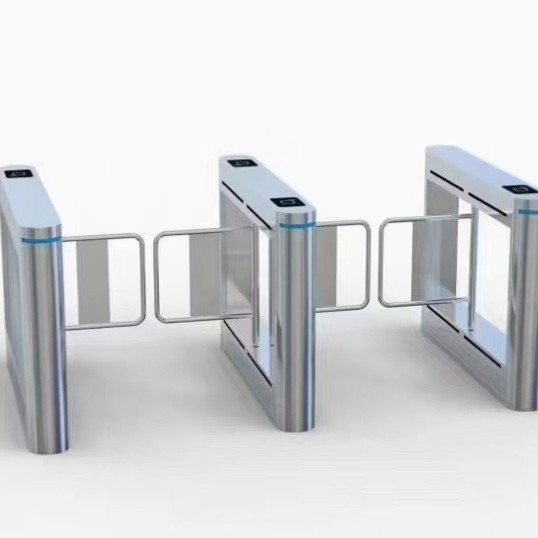

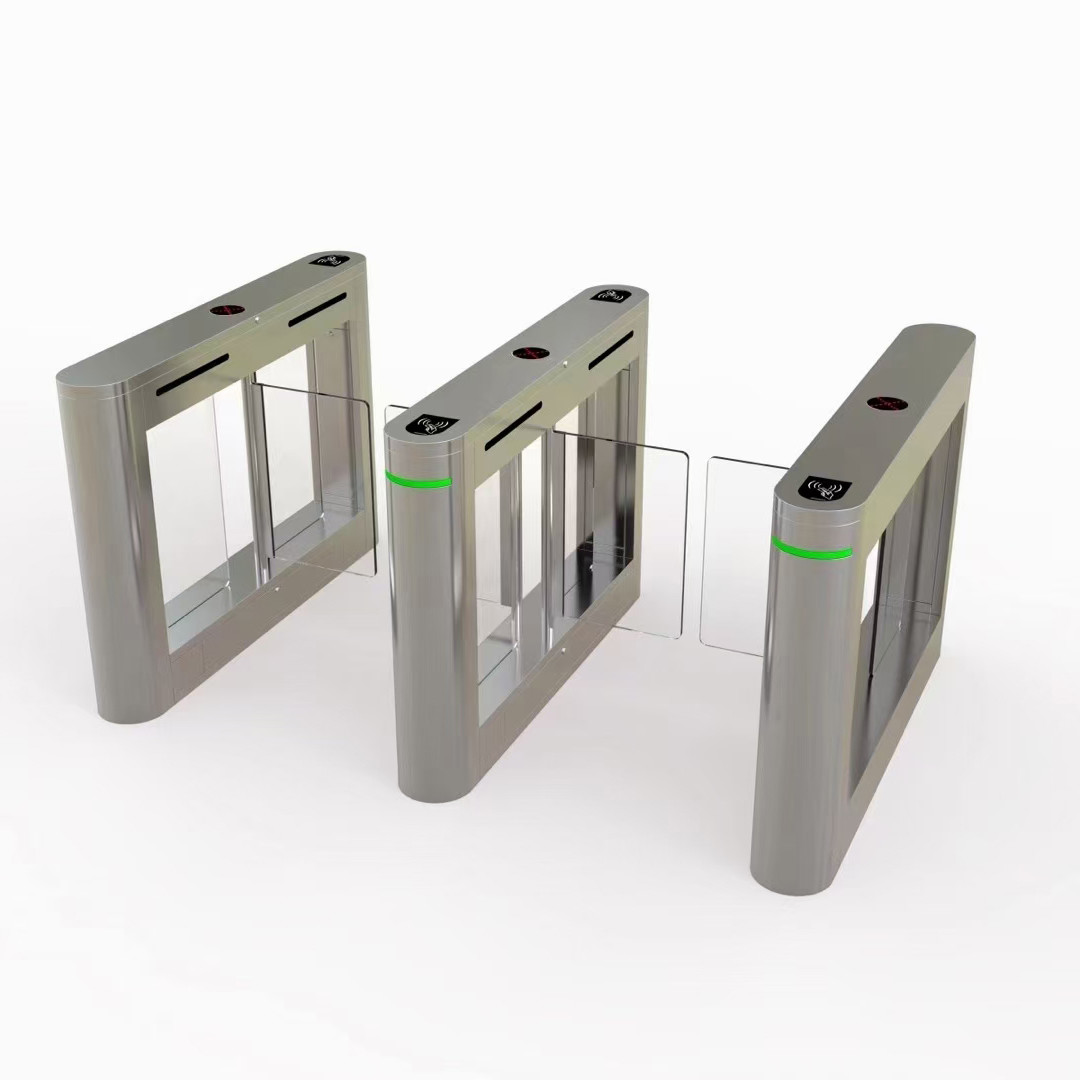

Bidirectional SUS304 Waist Height Automatic Gate Barrier System
Product Details:
Automatic Gate Barrier System ---can be compatible with IC card , ID card ,barcode card , fingerprint
reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff.Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community ,
enterprises and institution that need intelligent access management.
Specification:
| Technology Parameters | |
| Size | 1400/1600×120×990mm |
| Unlock time | 0.2s |
| Pass rate | 35p/m |
| Pass width | ≤550mm |
| Input | 100V~240V |
| Driving voltage | 24V |
| Environment | -25~+70℃ |
| Power consumption | 35W |
| Input | Dry contact |
Functions:
◇The new generation of industrial-grade ARM control system is independently researched and developed by KOMAI Company. It can program the running state of the equipment and multiple working modes, and add multi-function settings, which is more scientific, outstanding and intuitive;
◇Alarm function: equipment alarms when illegal entry, trailing, or overtime occurs;
◇ Illegal intrusion prevention function: when controlled passage is not given a legal passage signal or prohibited from passing, forcibly entering the channel will be regarded as an illegal intrusion, and the system will automatically alarm and ensure that the swing arm is closed.
◇ Anti-reverse intrusion function: When the door is opened by swiping a card in a certain direction, pedestrians entering the passage from the opposite direction will be regarded as a reverse intrusion, the system will automatically alarm and close the swing arm, and the swing arm will be opened next time when the reverse person leaves , It is convenient for normal passers not to swipe the card twice.
◇ Power-on self-test function: When the device is powered on or restarted, it will automatically detect whether the function is normal, and it will alarm and prompt the code when it finds an abnormality.
◇ Anti-pinch function: Infrared and mechanical double protection, thus effectively protecting the safety of pedestrians
◇ Anti-collision function: Adopting KOMAI's intelligent self-developed mechanical structure, it has a buffer function when illegal passage or gate rushing occurs, which can reduce the damage to the swing door while effectively preventing pedestrians from forcibly passing through, and greatly reduce the cause Mechanical damage caused by collision;
◇ Emergency escape function: After receiving the fire alarm signal, the equipment will be opened first unconditionally, and it will be equipped with the function of automatically opening the swing arm when the power is turned off, so that the gate will be open, which is convenient for evacuation of people and meets the fire protection requirements;
◇ Compatibility: It is equipped with dry contact signal input interface and wide threshold level signal output interface, compatible with various access control controllers.
FAQ:
1. Q: Do you have any MOQ limit?
A: No. We have no MOQ limit. MOQ of all our products is 1pc.
2. Q: What if the products have problems?
A: All product offer 2 years warranty except for the man-made damage. And we can offer any technical support for operation problem.
3. Q: Dose the device’s language can be in other language?
A: Yes, of course. Multi-language can be customized. If there still any problems, please don’t hesitate to contact us.
4. Q: What about the Payment?
A: You can pay for the order via: T/T, Western Union, Paypal. Total price is based on FOB Shanghai. Paypal for small sample orders; T/T(Telegraphic Transfer) or Western Union; L/C(Letter of Credit) for high value orders; Cash for face to face business.
5. Q: How do you ship the goods?
A: We usually ship by DHL, UC, SF, FedEx or TNT. You can choose sea or airline service by your needs. You can choose sea or airline service by your needs.
6. Q:How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
7. Q: What about the lead time for mass production?
A: Honestly, it depends on your order quantity and the season you place the order. We suggested that you start inquiry to months before the date you would like to get the products at your country.
8. Q:Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
