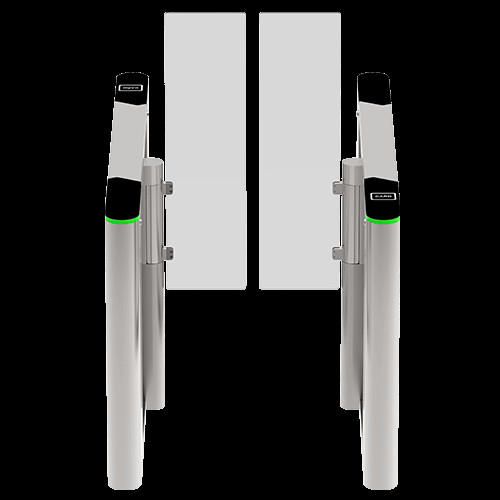

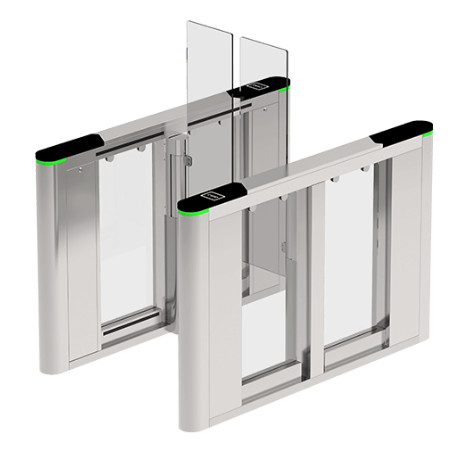

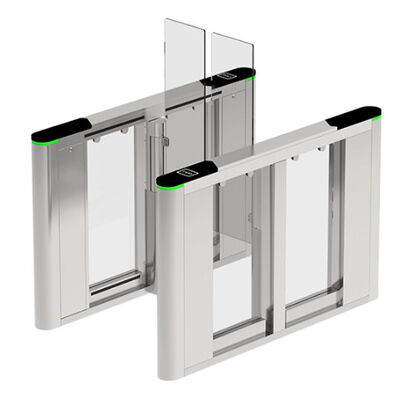

550mm Lane Bidirectional SS304 Access Control Security Systems

304 Stainless Bidirectional Turnstile Access Control Security Systems

Product Details:

Speed gate offers a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. This swing barrier gate is an attractive swing turnstile with slim and elegant design. The top cover is man-made marble material, which can be customized to other materials accoring to your need.It's integrated with face recognition device, QR reader, fingerprint reader etc. It's equipped with clutch to prevent violent break-in of damage the gate.

Specification:

Functions:

Automatic return function: in the normally open or normally closed mode, the gate swing will automatically return to the blocking zero position after the passing process.

Automatic reset function: (remote manual reset mode is optional)

(1) after legal traffic signal is given, no one passes within the specified passing time (adjustable), the system will automatically restore the gate swing to block zero position, cancel the passage, and do not count.

(2) Due to the abnormal or illegal passage of the system, the brake pendulum does not return to the blocking zero position. After the specified time (adjustable), the system will automatically restore the brake pendulum to the blocking zero position.

Power off and switch on function: it adopts the original leading mechanical structure in the industry, without UPS power supply. When the power is off, the system will automatically unlock the gate swing, which can be manually pushed to open state, which is convenient for evacuating people and meeting the requirements of fire protection.

Anti illegal entry function: when there is no legal traffic signal or no passing is allowed when the controlled passage, the forced swing will be regarded as illegal intrusion, and the system will automatically alarm and ensure that the lock of the gate swing.

Anti reverse intrusion function: before the end of the passage process in a certain direction, the pedestrian entering the passage from the opposite direction will be regarded as a reverse intrusion, and the system will automatically alarm and ensure that the brake swing locks and stops.

Anti reverse traffic function: in the process of passing, when the brake pendulum has swung at a certain angle, pulling the swing swing reversely will be regarded as reverse passing, and the system will automatically alarm and ensure that the brake swing locks and stops.

Anti tailing function: the infrared detector detects the pedestrian traffic condition, and the system will automatically alarm and ensure that the brake swing locks to stop action after detecting the phenomenon of tailing; the minimum recognition distance of tailing is less than 20 mm, ranking the world's leading level.

Power on self check function: when the equipment is powered on or restarted, it will automatically detect whether the function is normal or not, and it will give an alarm if it is abnormal.

Intelligent linkage alarm: including illegal intrusion, reverse intrusion, reverse traffic, tailgating, power on self-test, etc., which can be linked with other alarm monitoring equipment, and set alarm mode and parameters through software.

Anti pinch and anti collision function:

(1) infrared anti pinch: multiple pairs of infrared detectors are installed in the area close to the brake swing activity (anti pinch area). Once people or objects are detected in the anti pinch area, the brake pendulum will stop automatically; until the person or object leaves the anti pinch area, the brake pendulum will continue to act.

(2) Mechanical anti pinch: when the brake pendulum encounters obstacles in the swing process, it will bounce back instantaneously; the impact force in the swing process of the brake pendulum is within the safe range.

Anti collision function: when the brake pendulum is locked, it can withstand the impact force within the safe range. When beyond the safety range, the brake pendulum can be pushed slowly to protect the movement and pedestrians, and then it will reset automatically.

Emergency escape function: equipped with emergency escape control device, the system can automatically open the brake swing, convenient for evacuation of people (remote control).

Pass indication function: LED is installed on the top of the box to indicate the traffic status and direction (default) / other positions are installed with LED indication (optional).

Access request memory function: when more than two legal traffic signals are given at the same time (including the same direction and reverse direction), the system will memorize all traffic requests and complete each traffic action in turn (the number of memory and whether to select the memory function can be customized according to customer requirements).

Traffic restriction function: the number of people passing through can be limited by software to meet the personnel management under special circumstances. Batch setting function: multiple gates can be set and debugged in batch through software to improve efficiency and reduce maintenance cost.

Access mode: the access directions can be set independently as [controlled passage] / [free passage] / [no passage].

Working mode: normally open (default) / normally closed / open, freely switchable.

Compatibility: equipped with dry contact signal output interface and wide threshold level signal input interface, compatible with all kinds of access control controllers.

Key features:1.The whole system runs smoothly. Long-life performance, high operation dependability and fast response.
2.Alarm function, in case of illegal intrusion and reverse intrusion.
3.Infrared sensor to prevent pedestrians from getting clamped.
4.Anti-breakthrough function: The gate is locked automatically until opening signal received.
5.Anti-trailing function: the turnstile will lock if there is forced entry without swiping the RFID card.
6.LED indicator.
7.When power is off, optical turnstile will open automatically, which complies with fire safety requirements.

FAQ:
1. What is the strength of your company in this industry?
We are the top 5 in turnstile field in China, more than 120 employees and over 20 senior R & D technical persons to ensure the gate could work well in different environment, power supply and current. Experienced foreign trade business team can help you to deal with any emergency before, during and after the sales. The brand KOMAI is highly recognized in Southeast Asia.
2. What is your pricing strategy?
For overseas markets, we will use competitive prices to support a strong distributor in each area, and gradually establish overseas service agency, as a good opportunity, some long-term cooperation partners will compete with us to sign the annual cooperation agreement (including execution price).
3. How about Quality Control?
IOS9002 could help us to realize the factory management control and our ERP system can help us to control the cost of procurement links effectively, so we can provide a good price. New test system could do uninterrupted fatigue testing to ensure its using life. Pre-shipment inspection and third-party supervision are available.
4. How about some special design?
That's our advantage of design new gate or barrier according to your real situation to make different size, software and features. Video call available during design and communicate in time during this procedure.
5. Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.
6. What time do you need to delivery?
Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order quantity. We could talk about this question before final payment.
7. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.
Customized products: 50% deposit, 50% balance payment before shipment.
Contract amount more than USD15000: 50% deposit, 50% balance payment before shipment.
T/T, PayPal, Alibaba Credit guarantee order
8. How to ship?
By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.
