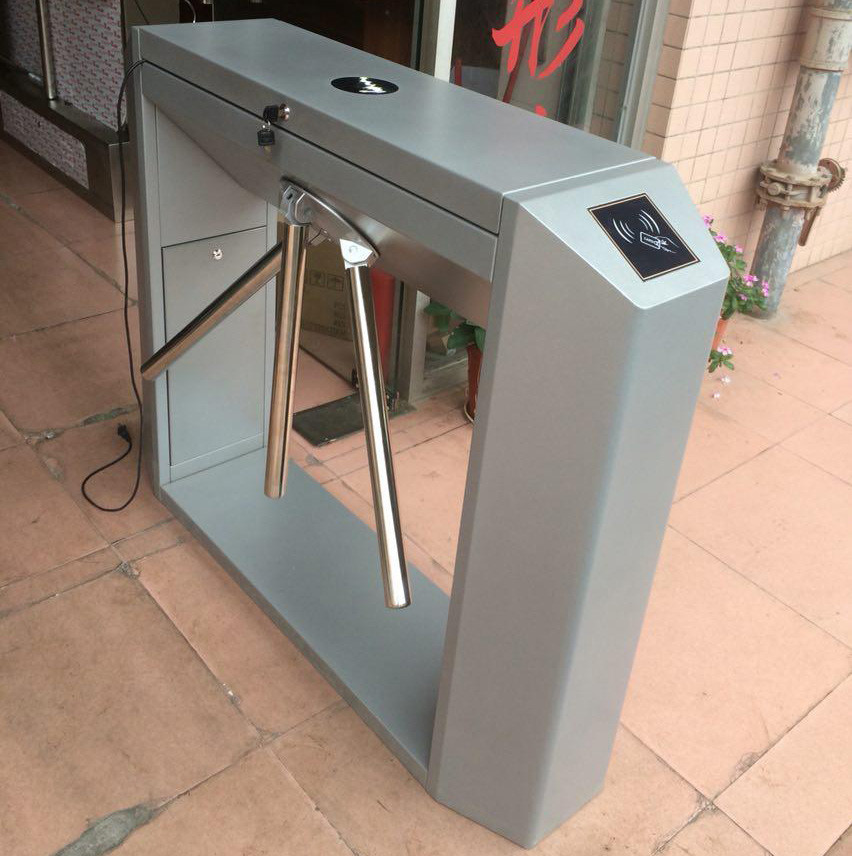

40Persons/Min SUS 304 Pedestrian Tripod Gate Barrier FCC For Access Control

SUS304 Pedestrian Tripod Barriers For Access Control

Product Details:

1) Production process: full computer numerical control laser cutting machine

2) Production weight: (vertical type 40kg), (bridge type70kg)

3) Maximum bearing force of brake rod: 80kg

4) Driving force of brake rod: 3kg
5) The brake lever steering: one-way, two-way (optional); with a variety of working modes to choose, i.e. two-way card reading and current limiting; one side card reading and the other direction prohibition, while reading card and the other direction free passage

6) Size: 1200*280*980mm

Functions of Pedestrian Gate Access Control Tripod Turnstile Gate

1). Running stably without noise and mechanical impact

2). The number of the passing persons can be counted via the built-in people counter

3). Several ways of working modes for option

4). Bi-direction or one direction permitted. One forbidden. Or one direction charged.

One for free . And all the working modes set by the buttons in the main control board

5). Beam falling and lifting can be controlled in far distance so to satisfy the special require ment of the users and the request of fire protection

6). LED Direction-guide lights in the turnstile to tell you whether the direction to go or not

7).The standard electrical interface connected with various kinds of reader and writer equipments

8). All the functions realized in one integration machine and controlled and managed by the computer in the far distance

9). The number of the persons passed can be counted automatically which can also be display in LED

10). The function with or without card-reading memory can be set according to your demand

11). Self-check and alarm for convenient to operate

Features:

1. GB 304 stainless steel sheet metal forming, beautiful, durable
2. Dimensions : 1200*280*980 (mm)
3. Channel width: less than 550 (mm);
4. Brake lever steering : one-way, two-way (optional)
5. Control mode: manual/ automatic (optional)
6.Support HDMI external large screen;
7.Support night light fill;
8.Support external QR code scanner and ID card reader (currently only supports the excellent card reader ID-R21 serial version);
9.Support serial port, Wiegand 26, 34 output, output content support configuration;
10.Adopt dynamic face detection and tracking recognition algorithm based on video stream
11.Support device local storage mega-bank, support simultaneous storage of 20,000 face photos (photos are calculated in 100KB), 10,000 identification records (including on-site snapshots);
12.When the face database is 3000, the recognition rate of 1:N is 99.7% under the condition of three-thirds of the misunderstanding rate;
13.Fast recognition speed, (a) face tracking and detection takes about 20ms (b) face feature extraction takes about 200ms (c) living body detection face time takes 0.2ms (1000 people library, multiple recognition Average), 0.5ms (10000 people database, multiple recognition average);
14.Support for stranger detection, stranger level configurable;
15.Support for live photo preservation when face recognition or stranger detection;
16.Support LAN deployment mode;
17.Support HTTP interface interface docking;
18.Support screen display content configuration;
19.Support for identifying distance configurations.

FAQ:

1. What is the strength of your company in this industry?
We are the top 5 in turnstile field in China, more than 120 employees and over 20 senior R & D technical persons to ensure the gate could work well in different environment, power supply and current. Experienced foreign trade business team can help you to deal with any emergency before, during and after the sales. The brand KOMAI is highly recognized in Southeast Asia.
2. What is your pricing strategy?
For overseas markets, we will use competitive prices to support a strong distributor in each area, and gradually establish overseas service agency, as a good opportunity, some long-term cooperation partners will compete with us to sign the annual cooperation agreement (including execution price).
3. How about Quality Control?
IOS9002 could help us to realize the factory management control and our ERP system can help us to control the cost of procurement links effectively, so we can provide a good price. New test system could do uninterrupted fatigue testing to ensure its using life. Pre-shipment inspection and third-party supervision are available.
4. How about some special design?
That's our advantage of design new gate or barrier according to your real situation to make different size, software and features. Video call available during design and communicate in time during this procedure.
5. Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.
6. What time do you need to delivery?
Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order quantity. We could talk about this question before final payment.
7. How about the payment method?
Standard products: 30% deposit, 70% balance payment before shipment.
Customized products: 50% deposit, 50% balance payment before shipment.
Contract amount more than USD15000: 50% deposit, 50% balance payment before shipment.
T/T, PayPal, Alibaba Credit guarantee order
8. How to ship?
By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.
