| Place of Origin: | China |
|---|---|
| Brand Name: | KOMAI |
| Certification: | ISO, Rohs, CE, FCC |
| Model Number: | KM-TR830 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiable |
| Packaging Details: | Wooden Box Package |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs per month |
| Leafs: | 304 Stainless Steel / Acrylic (Optional) | Lane Width: | 600-1200mm |
|---|---|---|---|
| Size: | 1400*150*1000mm | Communication Interface: | RS485 / TCP / IP / Relay |
| Mechanical Life: | 1000000 Times | Application: | Office\School\Airport\Subway\Outdoor |
| Product Name: | Barrier Turnstile | Opening Method: | Relay, TCP/ RS232 / RS485 |
| Highlight: | SUS304 Tripod Gate Barrier,RFID Access Control Tripod Gate Barrier,SUS304 Access Control Barrier |
||

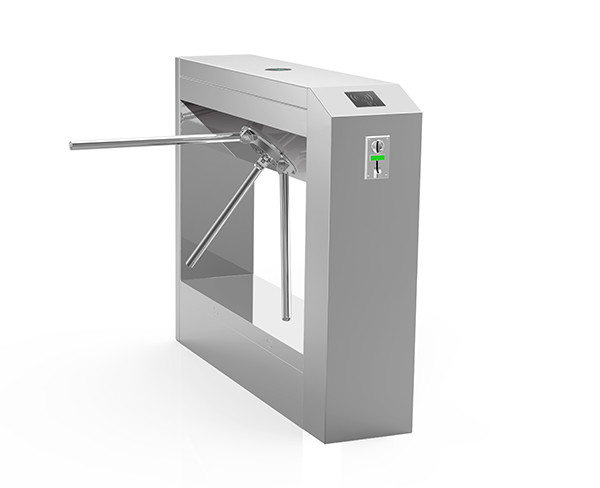

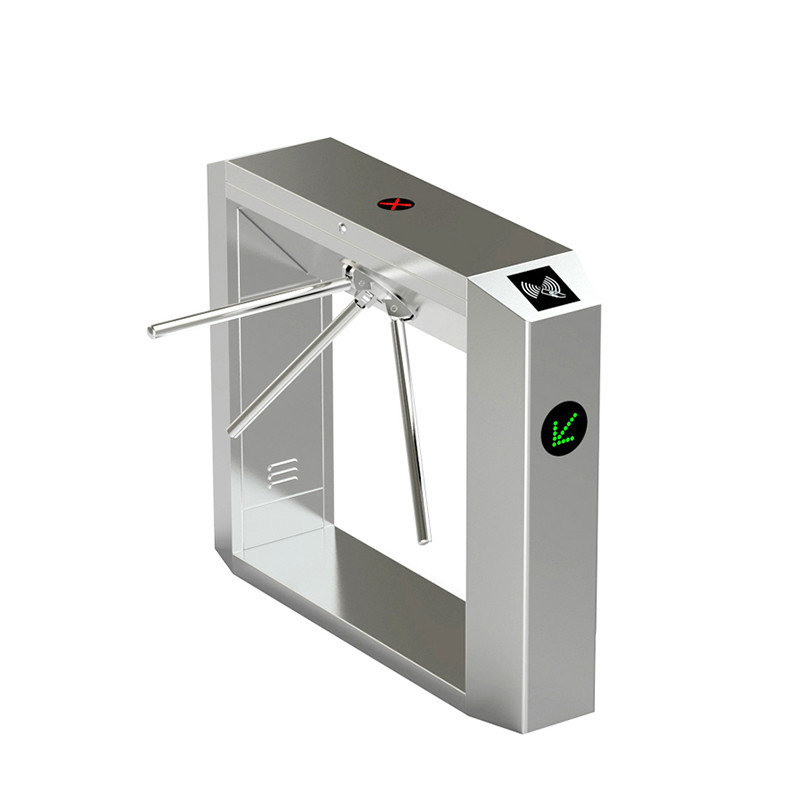

Half Height SUS304 RFID Access Control Tripod Barrier
Product Details:
SUS304 RFID Access Control Tripod Barrier adopts the unique technology of our company---the precise photo electricity limit and gear to orient the closure. The 304 stainless steel entrance tripod turnstile be unlocked and reset because of the specific motor. The closure is very precise and stable. This series of 304 stainless steel entrance tripod turnstile adopt standard electricity socket. It can read boom code card, ID cards, IC cards,s and so on.
Functions:
1.Stainless steel housing
2.Bi-direction passing, the arm can rotate from one direction or two directions(optional)
3.Adjustable working mode can be two-way passing or one-way passing, and the other is prohibited
4.Arms auto drop when power off
5.Arms auto rise up when power on and auto drop on an obstacle
6.Traffic light indicator
7.Wingen 26/Dry contact, is compatible with smart card for access control
8.Photoelectric inspection
9.If the passenger does not pass the invalid time, the passage will lock up, and the valid time is adjustable
10.Passenger counter support.
Parameter:
| Model | SUS304 RFID Access Control Tripod Barrier |
| Brand | KOMAI / OEM |
| Size/Stick length | 1200*280*980MM |
| Arm length | 550 mm (norm) |
| Material | SUS 304 thickness(1.5mm), Acrylic arms |
| Input Voltage | AC110-220±10%,50HZ60HZ |
| Moter's power | 24V |
| Failure-free operation | 10 million/time |
| Weight | 70kg |
| Traffic speed | 40 persons /min |
| Opening/Closing Time | 0.5s |
| Operating humidity | ≤90% |
| Operating temperature | -15℃-60℃ |
| FWD DS | |
| Working environment | indoor and outdoor |
FAQ:
1.What's the MOQ?
The MOQ of the tripod turnstile is 1pc/pair
2.Whether the size and shape of turnstile can be changed?
Yes, we can redesign the size and shape of the turnstile to meet your requirement.
3.Is the parts of turnstile available?
If you order our turnstile, the parts can be offered.
4.About the OEM and ODM
Our turnstile can be label your logo to meet your requirement.
5.About the warranty and after-sales services
We provide one year warranty and all life after-sale service, if require, we can dispatch our engineer to the spot to
help you
6.About the package
For turnstile, carton package first, then wooden case package to make sure if won't be damaged in the process of transportation.
7.About the installation
We provide the manual to help you to install our turnstile, as for the software, we provide team viewer to install the
software. Any help will be provided to meet your needs.
8.About the delivery time
5-7 days after payment received
9.About the term of delivery
Support EXW, FOB,etc.
