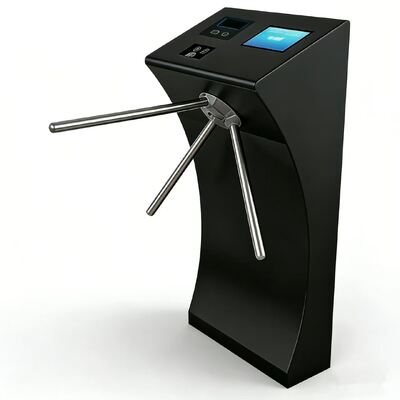

Black Color Turnstile Tripod with Unattended Card Dispenser Turnstile Motherboard

Brand Name:	KOMAI
Model Number:	KM-TR10
MOQ:	2pcs
Price:	Negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	5000 per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE/RHOS/FCC/ISO

Access Contol Type:

QR Code, IC Card, RFID Card

Communication Interface:

RS-232, Rs485

Operation Direction:

2-Way

Barrier Motor:

Servo Motor

Material:

Stainless Steel 304, 1.0mm SUS

Turnstile Function:

Anti-Pinch, Anti-Tailgating,Collision Avoidance

Barrier Open/close Time:

0.2 S

Protection Level:

IP65

Power Supply:

AC220V+/-10% 50HZ/60HZ

Environment:

-25~+75℃

Product Name:

Vertical Tripod Turnstile

Color:

Silver Or Customize

Service:

OEM&ODM Service

Type:

Single Core And Dual-core Turnstile

Packaging Details:

Wooden Box

Supply Ability:

5000 per month

Highlight:

black tripod turnstile gate

unattended card dispenser turnstile

turnstile motherboard for tripod

Product Description

Pass Width	600mm
Passage Direction	Single directional/Bi-directional
Pass Rate	35 persons/minute
Operating Time	0.2 seconds
Working Voltage	24V
Application	Commercial Building, Bus Station, Factories, Toilets, Library, etc;
Communication Interface	Dry contact
Mechanism	Solenoid lock
MCBF	5,000,000 Cycles
Light	Dynamic water lamp

Product function: 1.Auto replacement function, reposition after person pass by

2.Anti tail function auto-lock once turn 120° .

3.Arms auto drop when power off , insure unblocked when accident

4.Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work

5.Diverse control mode optional, changeable due to varying, convenient for your manage

6.Auto alert error function, comfort for user maintain and operate

7.Manual button or remote control ,Bio-directional passage

8.Open signal with memory or with out set function 9.Red and green light to show pass or stop, leisure to exit and entrance

FAQ: 1.Will you install the channel lock for the first time?

On channel brake installation is very simple, just put the product fixed well,

main machine and insert 110V/220V power supply, can normal use, if you need to connected to the Internet, only need to use a network line can be received from the main computer, we will provide all the one-on-one phone technology Guidance services.

2.Can machines be used outside?

It can be used outside. We all have waterproof function.

3.What is the warranty for the machine?

(1) we guarantee all goods quality assurance for two years.

(2) within the two years warranty time,if the machine have problem,we can offer you the accessories(but you pay the freight cost) 4.When will you make the delivery? Regular products:(3-5 days),irregular products:communication when you place the order.

5.How does your factory control the quality? We always attach great importance to quality controlling from the beginning to the ending.

6.What is your MOQ? Any quantity is acceptable for your order. And the price is negotiable for big quantity.

7.Payment term? 30% by T/T in advance.70% by T/T before delivery
