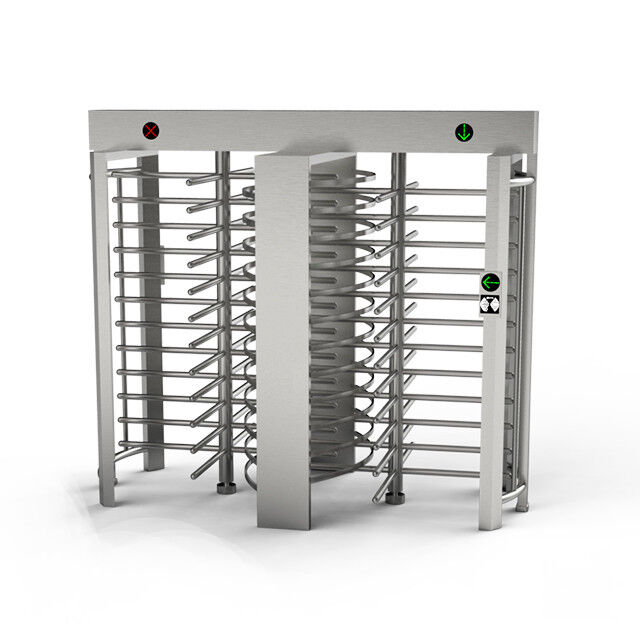

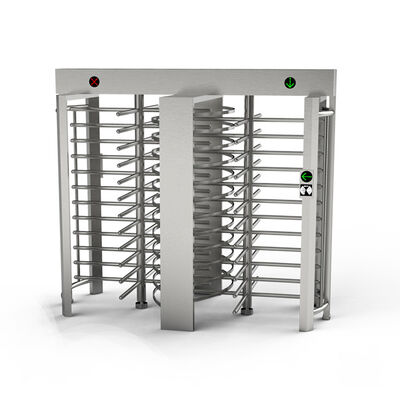

Security Access Control System Turnstile Gate RFID NFC QR Code Turnstile Mechanism

Security Access Control System Turnstile Gate RFID NFC QR Code Turnstile Mechanism

Security Access Control System Turnstile Gate RFID NFC QR Code Turnstile Mechanism

Brand Name: KOMAI
Model Number: KM-FB005
MOQ: 1pcs
Price: Negotiate
Payment Terms: T/T, Western Union
Supply Ability: 5000 per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE/RHOS/FCC/ISO
Product Name:
Full Height Speed Gate Turnstile
Material:
Stainless Steel 304
Application:
Security Access Control Management
Pass Speed:
30-45Persons/min
Power Supply:
AC 220V/110V 10% 50/60MHZ (optional)
Working Environment:
Temperature: -25 ~ +70
Communication Interface:
Dry Contact
OEM&ODM:
Support
Access Contol Type:
RFID Card, QR Code
Color:
Silver Or Customize
Operation Direction:
2-Way
Packaging Details:
Wooden Box
Supply Ability:
5000 per month
Highlight:

RFID NFC turnstile gate

,

QR code access control system

,

full height turnstile mechanism

Product Description

Full height turnstile Function:

  • Through the built-in small press disk on the main control board, the running state of the programmable device.

  • Unique two-way anti-inversion function

  • anti-scour function, when the opening signal is not received, the channel bar will be locked automatically.

  • the channel is automatically unlocked after the power is cut off, and the function of free rotation can meet the requirements of fire fighting, and the channel is locked and closed automatically after the power is turned on.

  • with automatic reset function, after opening the gate, when pedestrians do not pass within a specified period of time, the system will automatically cancel the pedestrian traffic authority, and the reset time is 1S~60S adjustable (the default time of the system is 10s).

Full height turnstile Technical Parameter:

Power voltage AC220 ±10%V/50 ±10%HZ Open angle 120°/90°
Communication mode 232/485 TCP/TP Pass speed 30 person/minutes
Movement Hydraulic movement Structure 304 stainless steel
Relative humidity None-condensation Open direction Single and Double(optional)
Input signal 12v DC level or Dry contact signal Work environment Outdoo(Canopy)and indoor
Working Current ≤2000mA Temperature -10 ℃-- 50 ℃
Working Noise Below 65 decibels Relative humidity ≤90%, non-condensing





Security Access Control System Turnstile Gate RFID NFC QR Code Turnstile Mechanism 0



Security Access Control System Turnstile Gate RFID NFC QR Code Turnstile Mechanism 1Security Access Control System Turnstile Gate RFID NFC QR Code Turnstile Mechanism 2
