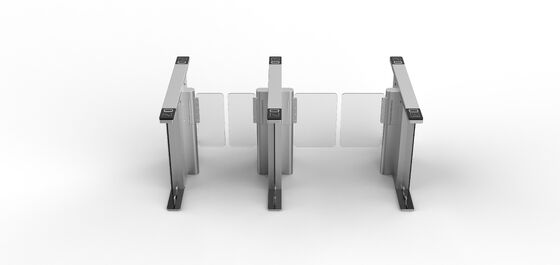

High-end Speed Turnstile Face Recognition Access Control Electric Two-Way Fast-Pass Security Gate for Office Gym Public Facilities

High-end Speed Turnstile Face Recognition Access Control Electric Two-Way Fast-Pass Security Gate for Office Gym Public Facilities

High-end Speed Turnstile Face Recognition Access Control Electric Two-Way Fast-Pass Security Gate for Office Gym Public Facilities

Brand Name: KOMAI
Model Number: KM-SP091
MOQ: 2pcs
Price: Negotiated
Payment Terms: T/T,Western Union
Supply Ability: 5000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Driving Motor:
DC 24V Brushless Motor
Protection Level:
IP54
Passing Speed:
20~60 People/minute
Communication Interface:
RS485/232 (Transmission Distance ≤ 1200 Meters)
Packaging Details:
wooden box
Supply Ability:
5000pcs per month
Highlight:

face recognition speed turnstile

,

two-way fast-pass security gate

,

electric swing barrier turnstile

Product Description
Product Series:
Swing Gate
High Speed Gate
High Speed Gate
Swing Gate
Model No.:
KM-LM120
KM-LM120
KM-GX120
KM-D180
Product Size (mm)
1400*120*1000
1400*120*1000
1200*120*1000
1400*180*990
Housing Material
Aluminum
Aluminum
304 stainless steel
304 stainless steel
Swing Arm Material
10mm PMMA or stainless steel pipe for optional
Material of baffle
10mm tempered glass or PMMA for optional
Passing Width
550mm～1080mm
550mm～850mm
Infrared detection logarithm
4 Pairs
6 Pairs
6 Pairs
4 Pairs
Passing Speed
20~60 people/minute
Driving Motor
DC 24V Brushless motor
Protection level
IP54
MCBF
≥ 5,000,000 times
Communication Interface
RS485/232 (Transmission Distance ≤ 1200 meters)
Working Temperature
-20℃-60℃
Width of Door
5%--80%

304 Stainless Steel Smart Speed Turnstile Gate with RFID Card QR Code Face Recognition Swing Barrier Mechanism

Product Introduction:
SEWO dazzling swing gate Series is specially designed for venues that requires wide passing and a good appearance. It support QR Code, Fingerprint, Face recognition, IC or ID Card, Sensing, usually open and other access methods. Adopting national standard aluminum molding and streamlined color light strip, the whole design is simple and elegant, and full of dynamism.The movement structure produced by advanced technology ensures the reliability of long-term operation. It can be widely used in residential areas, universities, office buildings and other venues

Function

1.Strong and stable control core 1.1.Advanced non-destructive movement structure, and equipped with high-quality brushless DC motor, to achieve accurate control, stable operation and long service life; 1.2.The mean cycles beteween failures is more than 5 million times; 1.3.Support advanced dual intelligent anti-clip technology includes infrared anti-clip and mechanical anti-clip , comprehensive protection of pedestrian safety; 1.4.All electrical modules adopt a safety voltage below 24V to prevent pedestrian injury from electric shock; 1.5.When the power is off, the system will automatically unlock the swing arm, which can be manually pushed into the open state to facilitate the evacuation of people. 1.6.It can sensitively perceive illegal intrusion behaviors such as reverse passage and trailing, and can issue warnings through sound and light. 1.7.The alarm can be uploaded to the background management system . Interworking with other security systems.
2.Easy to maintain and install 2.1.Equipped with fault self-check function,it can alarm and prompt in case of abnormalities, making it convenient for users to maintain and use; 2.2.The waterproof level is up to IP54, ensuring the waterproof performance of the outdoor gate.
3.Other features 3.1.Build-in voice chip can achieve simple voice prompts and vividly and effectively guide pedestrians to pass; 3.2.Support displaying turnstile control board configuration information through the display screen, and configure parameters such as working mode (normally open, normally closed), control mode, and opening time through buttons. Full digital adjustment, convenient and simple adjustment control; 3.3.Equipped with multiple serial ports to meet the simultaneous access of multiple card reader devices. For serial port connection, you need to purchase a controller. 3.4.Support online operation and maintenance to meet the specification requirements of fault diagnosis, event management, traffic mode configuration, and movement control; 3.5.Support the turnstile to detect the number of passengers through infrared detection, and upload data to the management platform for data statistics; And record the number of abnormal events such as trailing, reverse, and forced entry, and upload alarms.

High-end Speed Turnstile Face Recognition Access Control Electric Two-Way Fast-Pass Security Gate for Office Gym Public Facilities 0

High-end Speed Turnstile Face Recognition Access Control Electric Two-Way Fast-Pass Security Gate for Office Gym Public Facilities 1

High-end Speed Turnstile Face Recognition Access Control Electric Two-Way Fast-Pass Security Gate for Office Gym Public Facilities 2

PROJECT CASE

High-end Speed Turnstile Face Recognition Access Control Electric Two-Way Fast-Pass Security Gate for Office Gym Public Facilities 3

High-end Speed Turnstile Face Recognition Access Control Electric Two-Way Fast-Pass Security Gate for Office Gym Public Facilities 4

High-end Speed Turnstile Face Recognition Access Control Electric Two-Way Fast-Pass Security Gate for Office Gym Public Facilities 5
