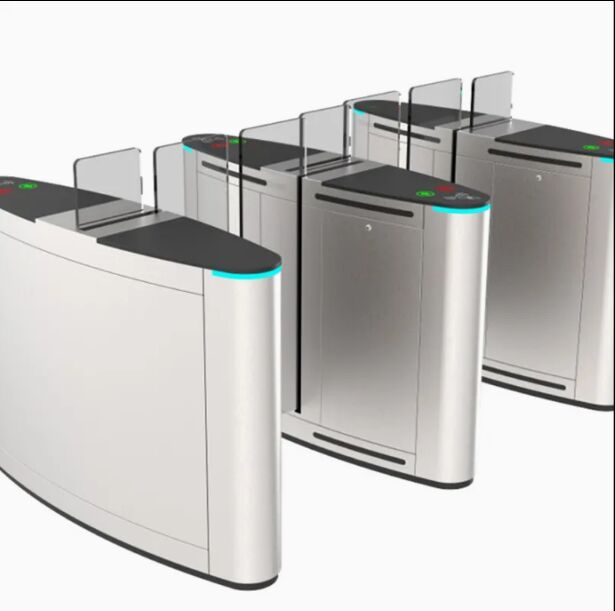

Customized Retractable High Precision Sliding Gate Turnstile For Office Card Access Control

The flat-wing gate integrates mechanical, electronic, microprocessor control, and various identity recognition technologies organically. It facilitates the use of IC cards, ID cards, barcode cards, ID cards, fingerprints, and ticketing machines for scenic areas. By selecting various identity recognition system devices and adopting reliable safety protection devices, alarm systems, and directional indicators, it coordinates to achieve intelligent control and management of passages.
Flat wing gate is divided into: single core and double core; Single core: for single channel and multi-channel; Double core: for multi-channel.
I. Technical parameters
Case size: 1400 long *330 wide *1000 high (MM)
Shape material: the main body is made of 304# stainless steel, the overall plate thickness 2.0+1.5mm above
Main control circuit: A9 main control board based on linux embedded system, communication mode 485;
Control mechanism: the whole electric mechanism is mechanically driven based on bearing control/control circuit based on ARM technology to develop the turnstile can be programmed online, the turnstile firmware can be upgraded to meet future requirements.
Channel indication: LED channel indication; real voice prompt function is supported
Extension arm length: 275mm
Maximum channel width: 600mm
Weight: 85KG
Case material: domestic standard (No.304) stainless steel
Door color: red, blue, transparent, gray optional
Input interface: relay switch signal or 12V level signal or 12V pulse signal with pulse width>100ms, drive current>10mA
Normal service life: 3 million times
LED indicator: red and green indicator, channel status indicator
Card reading window: 2 (can be increased according to requirements)
Speed: 50 people/min (always open), 25-30 people/min (always closed)
Gate open and close time: 1 second
Time required to enter the passage state after power on: 3 seconds
Automatic reset time after failure: 10 seconds
Ii. Main functions and features
Fault self-test and voice prompt function, convenient for users to maintain and use;
Brushless engine, gear transmission, more stable operation, longer life;
The operating status of the programmable device can be changed through the built-in small panel on the main control board;
The mechanical structure and the double anti-clamp function are used to automatically stop or stop the motor within the default time when the telescopic arm is blocked in the process of resetting, and reset again after default delay (until reset), and the force is very small (≤2Kg);
Sound and light alarm function: including illegal intrusion, tailing alarm;
With voice prompt, the entrance and exit voice can be set;
The anti-collision function, when no gate opening signal is received, the wing door is automatically locked;
Extension arm synchronization function;
It has the automatic reset function. After opening the gate, if no passage is made within the specified time, the system will automatically cancel the user's permission for this passage. The standard is 5 seconds after opening;
The channel is automatically opened after power failure and closed automatically when powered on; the motor noise is small
Can be connected with a variety of card reading devices to receive relay switch signals;
Single or double control of personnel in and out;
Remote control and management can be realized directly through the management computer;
