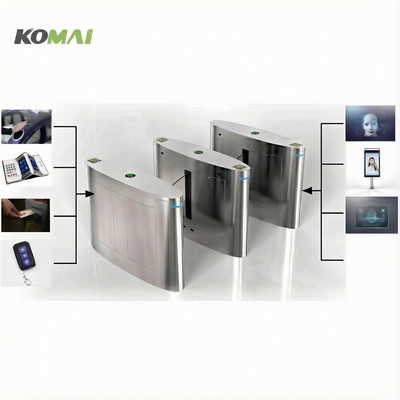

304 Stainless Steel Flap Barrier Turnstile with IC Card Access and 35 People/Min Pass Speed

Stainless Steel Flap Barrier Turnstile Supplier With IC Cards

Flap barrier turnstile series with innovative design, it extensive use in metro, school, office, scenic, gym, factory, residential, supermarket etc.. It can support RFID, fingerprint, facial verification mode. Combine with infrared detector, temperature controller, can widely used in all kind of different environment.

Luxury Intelligent flap gate ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff.

• Fault detection and alarm functions, easy to use and maintenance
• The running status can be programmed and controlled with the built-in keyboard on the main board
• Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
• Anti-breakthrough function. The gate is locked automatically until opening signal received
• Support infrared photocell for anti-pinch and reset function
• Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically
• Gate can be set as normally open or normally closed
• Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
• Direction can be set as single-direction or bi-direction
• LED direction indicator
• Gate auto opens when power off and auto close when power on
• Alarm function, in case of illegal intrusion and reverse intrusion, etc

1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2. DC Brushless Motor, Maintenance Free
3. On-line or off –line mode(optional)
4. Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5. With direction indication, guiding passenger to entry and exit.
6. Self automatic locking to prevent forcedly passing without the card
7. Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000
8. Light and sound alarm indication function, preventing illegal entry or irregular passing
9. Powerful on-line intelligent control mode, facilitating you:
   • To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
   • To set up operation mode for passage entry and exit.
   • To read card with multiple times, the special function meeting the application requirements of a particular site.
   • To set up the card reading with or without memory.
   • To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
   • Setting function humanized for reset of over time passing.
10. The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
11. The processing mode in emergency or in special conditions.
12. Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.
13. Super combination capability, with the combined application of products of different passage types and series, not affecting the system performance.
14. Strong system expending capability, available to add new product at any time
15. Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection
16. Resetting automatically. After reading card, if the passer didn’t pass at set time, the system will cancel pass permission automatically, the administrator can set the passing time by himself.

1. How about the quality of your products?
We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.

2. How do you do after-sale service?
We provide life-time technology support on line, by email, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.

3. How about the payment method?
Standard products: 30% deposit T/T, 70% balance payment before shipment.

4. How about the lead time?
Normally we have stock for the hot sale models of standard products.
Regular products need 7-10 working days.
The customized product need 15-20 working days.

5. How long is your warranty period?
One-year guarantee & Life-time technology support.

6. How about your package?
Seaworthy wooden case + Foam.
