| Place of Origin: | China |
|---|---|
| Brand Name: | SOMAC |
| Certification: | ISO, Rohs, CE, FCC |
| Model Number: | WR-M5/TWR-M5 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Standard |
| Delivery Time: | 3-7 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 5000 pcs/month |
| Communication: | TCP/IP; USB; Wiegand 26/34 | Product Name: | Access Control Reader |
|---|---|---|---|
| Power Supply: | 12V DC | Wiegand Signal: | Input And Output |
| Highlight: | OSDP V2 Biometric Access Control System,Wiegand biometric door access system,OSDP V2 biometric readers access control |
||

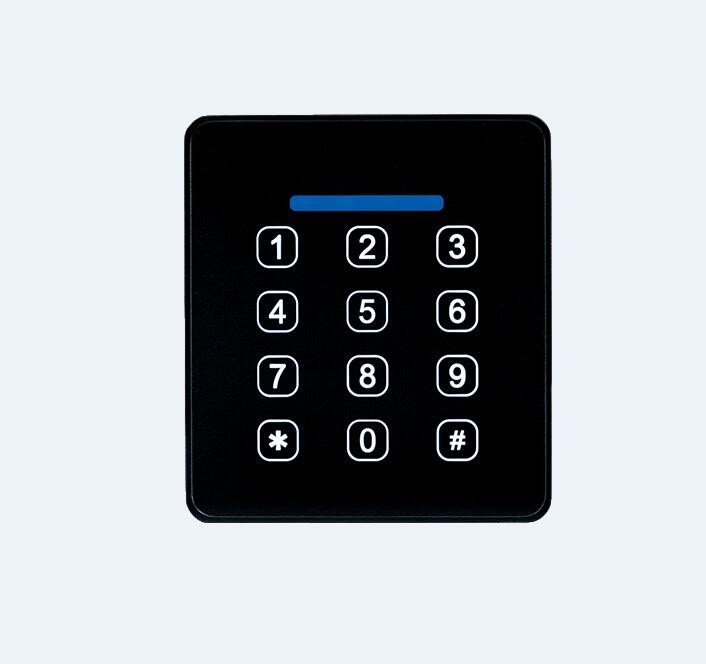

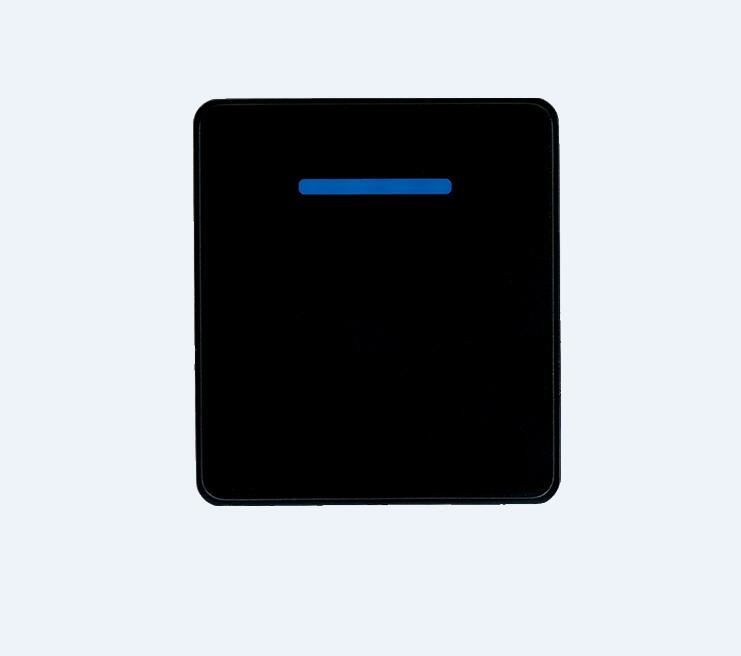

Modern Design IP65 Weatherproof Wiegand And OSDP V2 Access Control Reader
Introduction:
We provide the latest access control reader to fulfill your whole access control solutions. These readers are with modern design and basic IP65 weatherproof.
Both Wiegand and OSDP v2 reader support.
OSDP v2 Features:
It permits data to be encrypted during the transfer from readers to their hosts – and back. OSDP v2 also lets you configure a reader in real-time and directly from your control system; no more disconnecting or uninstalling readers. Importantly, CHIYU'S OSDP v2 readers use MIFARE DESFire technology, so seamlessly integrate into an existing MIFARE system is provided.
Door Access Control Systems Reader.
Specification:
RFID Card Type: Mifare (13.56MHz)
NFC Verification + Bluetooth Verification (WR-M5/TWR-M5)
Reading Range: 5 ~ 10 cm
Time for Card verification: 100ms
Power Consumption: Avg. 300mA
Communication: Wiegand/RS485 (Optional OSDP)
LED indicator: YES
Transmit Distance: 100M
ESD Protection: ± 2.5KV
Power Requirement: 9 ~ 24VDC (200mA)
Operation Temperature: 0°C ~ 55°C
Operation Humidity: 5% ~ 80%
Build-In Transceiver / Receiver, Watch Dog.
IP65 Weather Proof, Reader anti-collision, Self-Diagnostic, Surge Protection, Buzzer.
Dimension: 84.2 x 93.7 x 20mm (WR-M5/TWR-M5)
Weight: 95g
