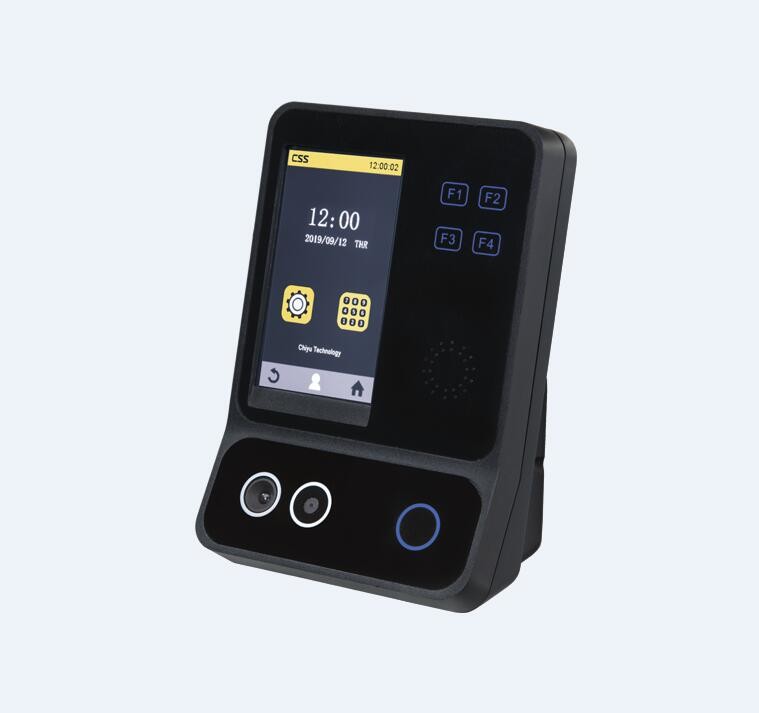

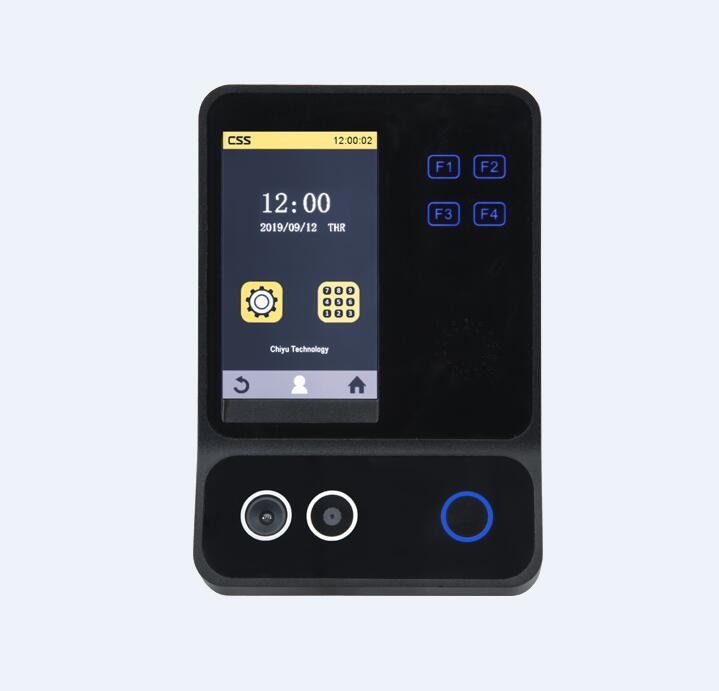

Mifare Desfire Biometric Access Control System

2000 Capacity Web Base Management Face Recognition Access Control Terminal

Introduction:

Smart Face Recognition Terminal

Facial recognition access control terminal can apply both on access control and time attendance. With its user friendly and high security, accompanied by Robust performance feature, make this face access controller more reliable in the market.

Face Access Control and Time Attendance Terminal

Features:
Contactless for ultimate hygiene.
Color screen for face positioning.
Audio prompt.
Various alarms enhance security level.
Embedded system enables plug and play.
Desk or wall mounting.
Somac supported.

Specification:

Software Application : SoMac/ Browser
Processor : ARM based 32 bits
Verification Mode : FACE/ Pincode/ Card
Proximity : EM/ Mifare/ Desfire
Face Capacity : 2000
Card Capacity : 20,000
Max. User Capacity : 20,000
Access Log : 100,000
System Log : 10,000
Snapshot Log : 5,000 Images
Web Base Management : Yes
PUSH methodology for real time log : Yes
IP Mode : Static IP/Auto IP(DHCP Client)
Verification Speed : < 0.5 second
Time Sets/Time Zones/Group : 255/120/255 SET
Holiday Set : 100
Inputs : 3 inputs (Exit Button/Door Sensor/Fire Alarm)
Built-in relay : 1 relay (COM/NO/NC) for door lock / 1 relay (COM/NO/NC)for Alarm
Tamper : YES
Scan Distance : 30cm - 80cm
TCP/IP : YES
RS485 : YES
Wiegand : 1 channel IN or OUT
USB : USB 2.0 host
COMMUNICATION DATA
Communication Method: TCP/IP, USB Host, Weigand Output, Push to Server
Communication Environment: LAN / WAN
Ethernet Interface: 10/100M Base-T, Auto Crossover
INDICATION DATA & USER INTERFACE
Audible Speaker: 16 bits mono
Buzzer: Single Tone
TFT Color LCD: 4.3 inches touch screen
Capacitive Touch Keys: 4 x 4
Anti-Tampering Switch: Yes
ELECTRICAL DATA & CONDITIONS
Operation Voltage: 12V DC / 1.5A
Operation Temperature: 0°C - 50°C
Operation Humidity: 10% - 80%RH
PHYSICAL DATA
Dimensions: 123 x 166 x 72 mm
Weight: 650 g
