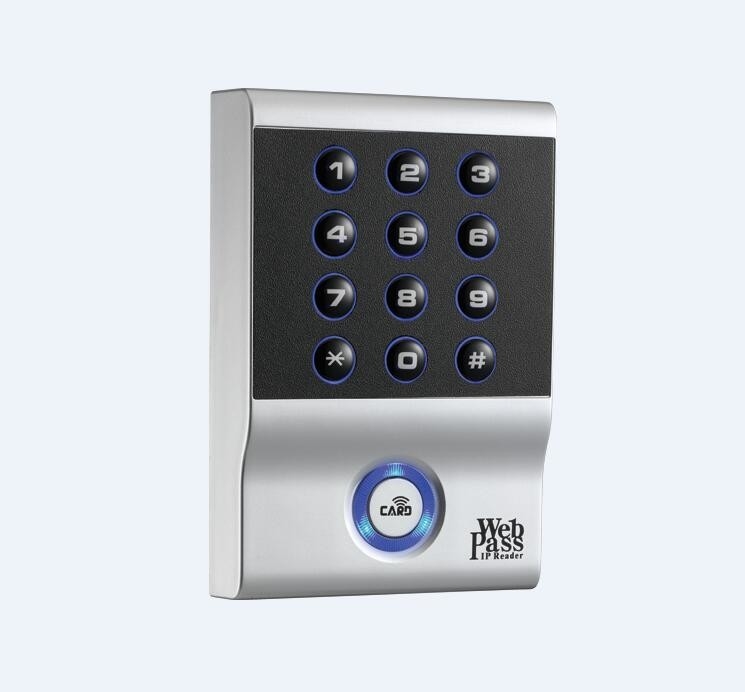

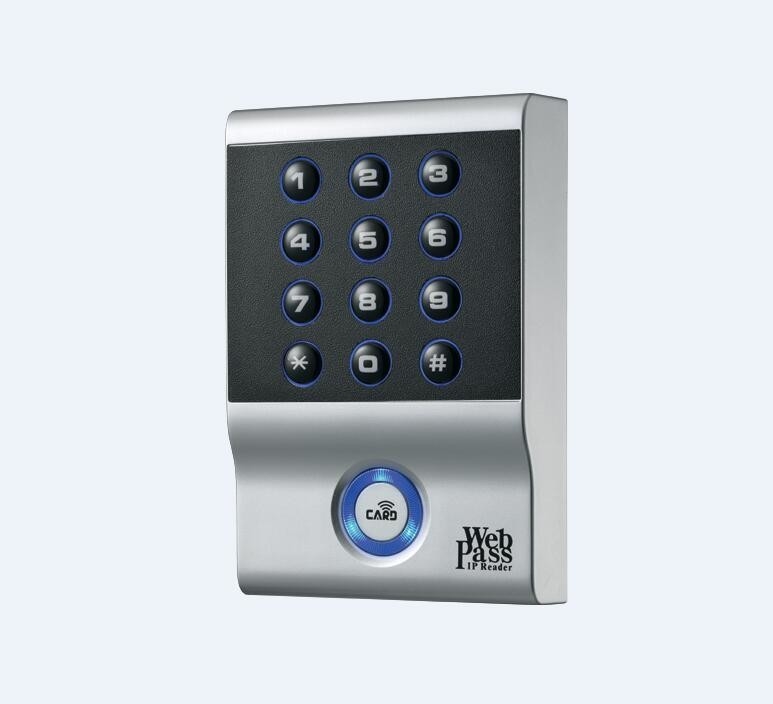

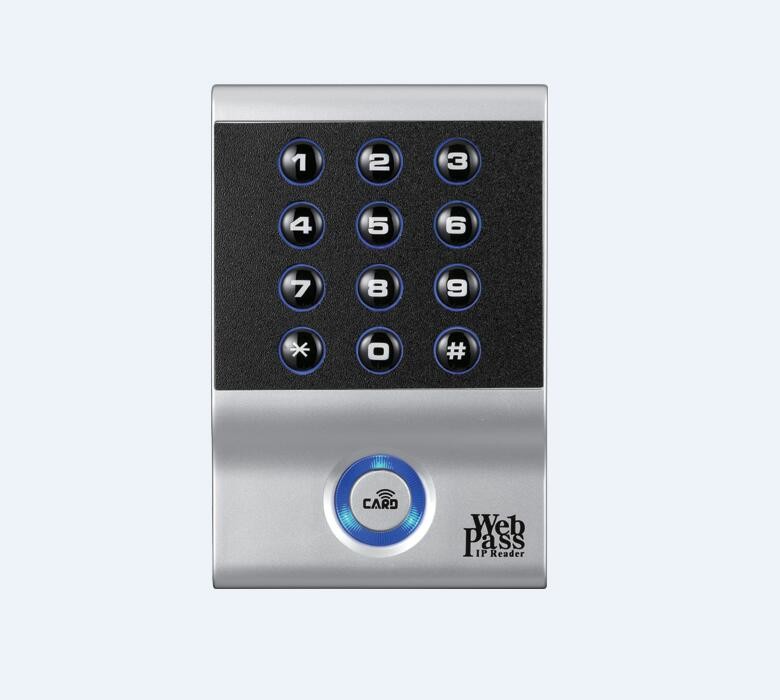

PoE Option Module 12VDC IP65 Access Control Rfid Reader

PoE Option Module IP65 Rated Weather Proof RFID Access Controller Reader

Proximity RFID Access Control Terminal, POE optional

Standalone, PoE option module, IP65 rated weather proof RFID access controller reader, which can be connected with more than one Webpass readers over single intranet (LAN). Every package of shipped item will be come with SOMAC, which is a proprietary access control management software to manage single or multiple units of Webpass IP Readers in a RFID access control system.

Optional Poe function (Power over Ethernet).
Frequency - EM / Mifare / HID.

IP54 Rated Weatherproof Access Controller with POE function

Features:

IP54 Outdoor weather proof reader controller.
Multiple card types support (EM / Mifare standard).
PoE (Power over Ethernet) function support (option).
Inbuilt HTT web server for management.
Proprietary software provide for advance management.

Specifications:

Verification Mode: Card / Password
Software Application: SoMac
Card Capacity: 20,000 (50,000 extendable)
Communications: TCP/IP, Wiegand/RS485
DIO Support: DI: 3 / DO: 1
Inbuilt Relays (Max. power loading): Door Lock / Ring (120VAC, 0.5A / 30VDC, 1A)
Power Over Ethernet: Yes (Option) (Conjunction box required)
Option Accessories: Conjunction box (Wiring / PoE)
System Log: 1,536 entries
Entry Log: 65,535 entries
Time Set / Time Zone / Group: 255 / 120 / 255 Sets
Holiday: Yes
Remote Control / Event Handle: Yes / Yes
Fast Registry: Yes
Ant-Pass Back / Anti Duress: Yes / Yes
Power Consumption: 400mA ± 5%
Power Requirement: 9 ~ 24VDC / 1A
Operation Temperature: 0°C ~ 65°C
Operation Humidity: 5% ~ 80% RH
Dimension / Weight: 120 x 80 x 28mm / 150g

Remarks:

Web Server, supported by SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods
All products with 2 years warranty.
