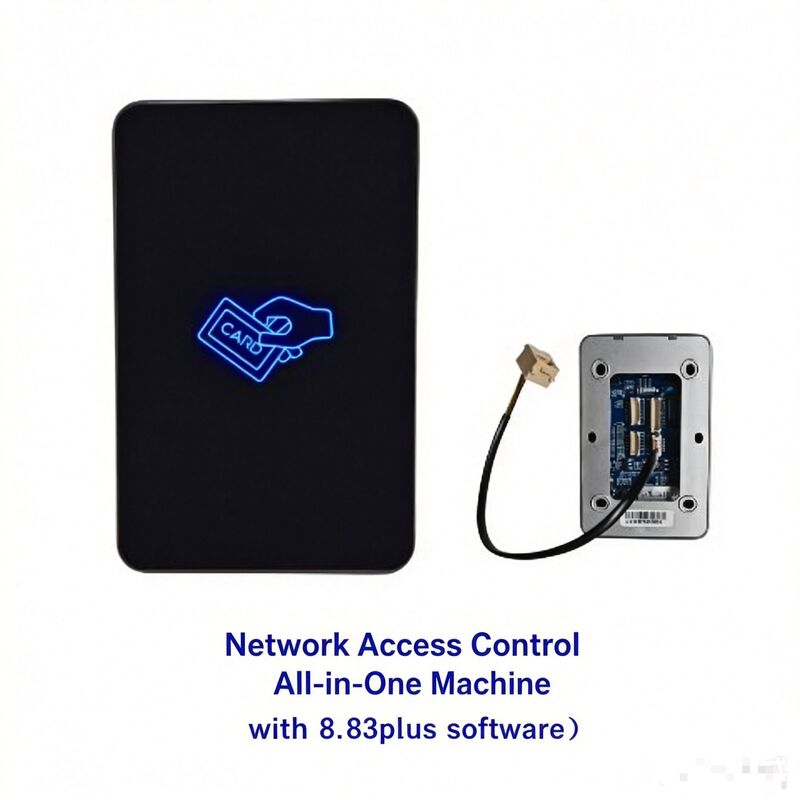

Card Reader Network Access Controller Device for The Plaza

Name: Card Reader Network Access Controller Device for The Plaza
Brand: Shenzhen KOMAI Automation Technology Co.,LTD
SKU: S13
Availability: InStock

Brand Name:	KOMAI
Model Number:	S13
MOQ:	1pcs
Price:	Negotiable
Payment Terms:	T/T, Western Union, Cash
Supply Ability:	5000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ROHS, FCC, ISO 9001

Products Name:

Network Access Controller Device

NFC Verification:

Yes

In-built Webserver:

Yes

Waterproof:

IP65

Operating Voltage:

DC12V

Work Current:

<100mA (No Payload )

Relay Power:

2A / 12DC

Ambient Temperature:

-35~65℃

Packaging Details:

Standard

Supply Ability:

5000pcs/month

Highlight:

card reader access control device

network access controller for plaza

biometric card reader system

Product Description

Network Access Controller Device

Product Description

This network-based access control machine is an access control device designed according to industrial-grade standardsConsists ofhigh-speed MCU,high-precision RTC,Flash memorynetwork transceiver and its related inputs/inputs Composition of outbound interfaces;Through the upper computer software communication, the import and export management of personnel is realized; It is one Access control products with strong anti-interference ability,high security and reliability; Easy to se,It can be widely used in homes, offices, residential quarters and other public places. Performance parameters.

.User capacity: 40,000(can be run offline)

·Record capacity: 100,000(offline storage)

·Communication Mode:TCP/IP(10M/100M Adaptive)

Number of doors:1Group(Relay+Exit Button+Door Magnetic Contact)·Number of external Wigand readers: 1(Exit Reader)

·Number of built-in RFID readers: 1(Wigand 34 IC Reader)·External card reader format: wigand 26~66 bit Adaptive Maximum number of connections:Unlimited Number of supported periods: 254 pcs

Supportantipassback,Scheduledtasksetc

Support first door /multi-card door openingetc

Support swiping card or password to open the dooretc Support Windows software management and SDK

The software can realize access control and attendance management and other functions Packing list

Equipment,8P cable6P cable,5P cable,4-core RJ45 network socket manual certificate etc

Mechanical &Electrical Parameters

Item Parameter

Operating voltage DC12V

Work current <100mA (No payload)

Ambient temperature -35℃~65℃

Relative humidity 10%~90%RH No condensation

Relay Power 2A/12VDC

Dimensions L116.5mmxW75mm xH20.5mm

ltem Parameter

Operating voltage DC12V

Work current <100mA (No payload)

Ambient temperature -35℃~65℃

Relative humidity 10%~90%RH No condensation

Relay Power 2A/12VDC

Dimensions L116.5mm xW75mm xH20.5mm
